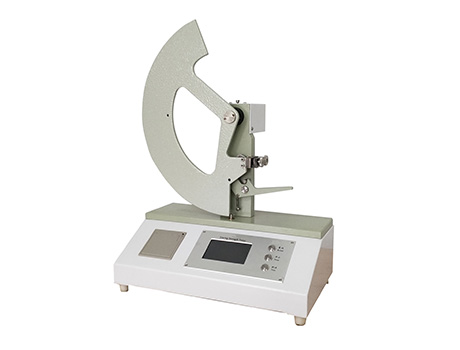

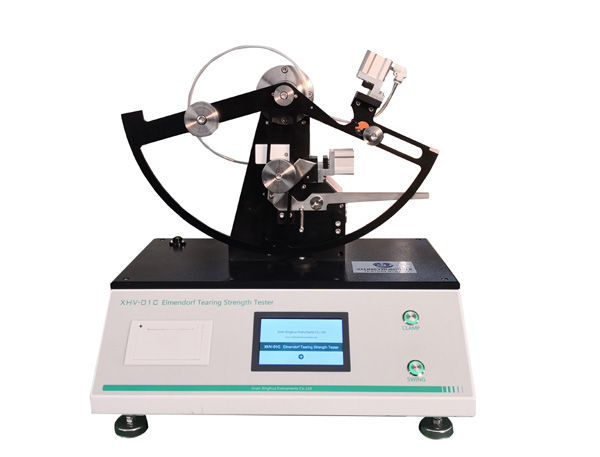

XHV-01C Elmendorf Tearing Strength Tester
Product Category:Plastic and Rubber Testing Equipments
Elmendorf Tearing Strength Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.
For testing fabric, advise use XHF-06C tearing strength tester:
https://www.xhtestinstruments.com/html/XHF06C-Powertear-Textile-Digital-Elmendorf-Tearing-Tester.html
ISO 6383-1, ISO 6383-2, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, ASTM D1922
★The instrument is controlled by micro-computer, large LCD display
★The instrument is designed by automatic and electronic measurement which improves the testing accuracy
★Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
★Computer assisted horizontal adjustment system could maintain the instrument optimum status
★Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control
★Professional software supports multi-unit data output
★Equipped with pendulums of multiple capacities
Pendulum Capacity | 200gf (2000mN), 400gf (4000mN), 800gf (8000mN), 1600 gf (16000mN), 3200gf (32000mN), 6400gf ((64000mN) |
Indication accuracy | ±1% |
Resolution | 1mN |
Tearing Length | 43±0.5mm |
Sample Holder | Pneumatic |
Pendulum Release | Pneumatic |
Dimension | 470mm×340mm×530mm |
N.W. | 30kg |

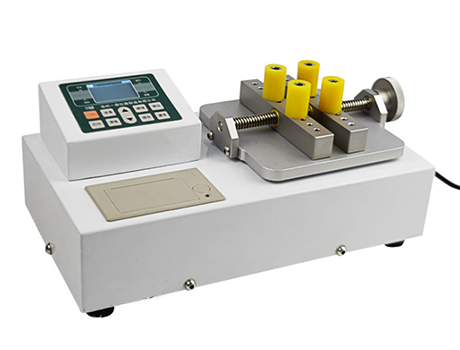

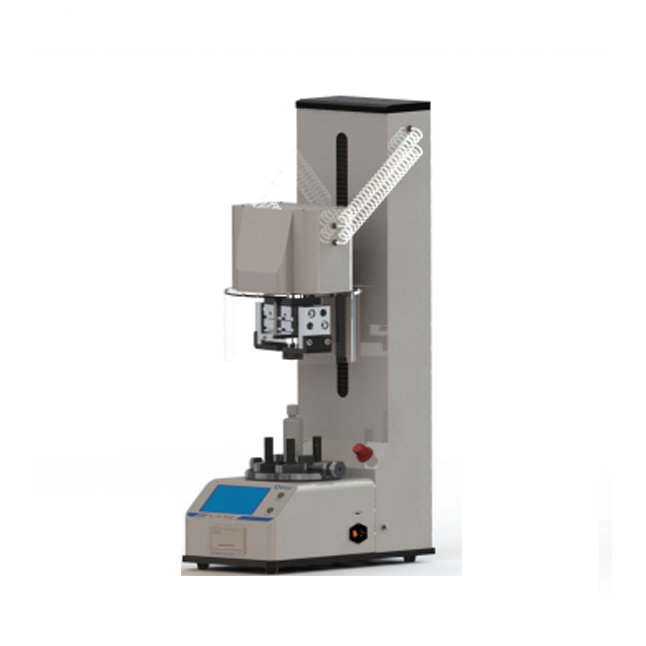

XHS-16 Bottle Cap Torque Tester
XHS-65 Guillotine Stiffness Tester

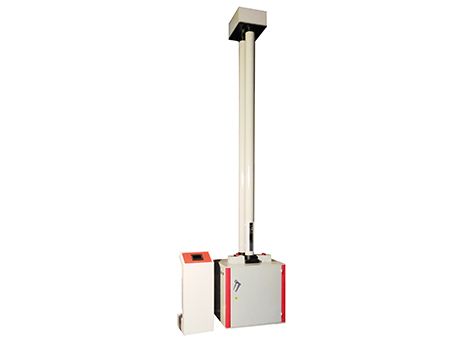

XHS-17 Falling Dart Impact Tester

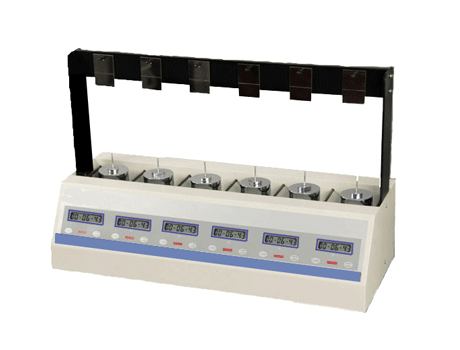

XHS-11 Lasting Adhesion Tester
XHS-WVTR-C6 Water Vapor Permeability Rate Tester

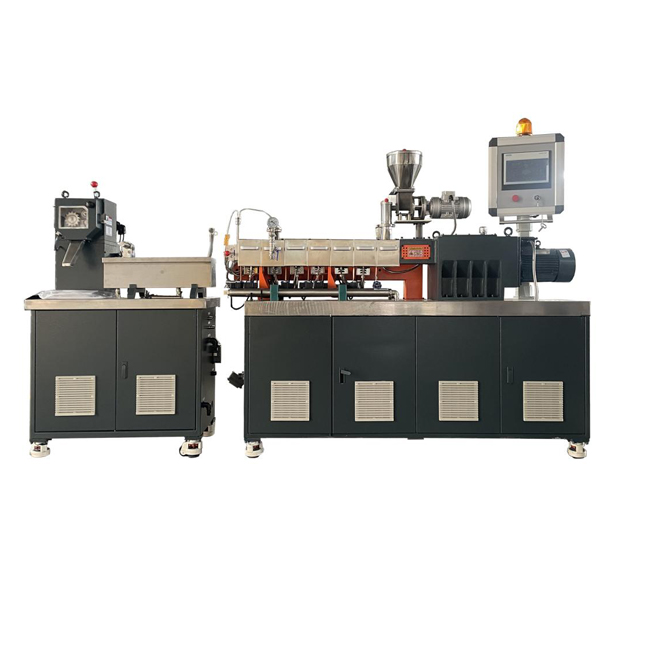

XHS-39D Lab Twin Screw Extruder
XHS-20 Plastic Bars Bending Tester

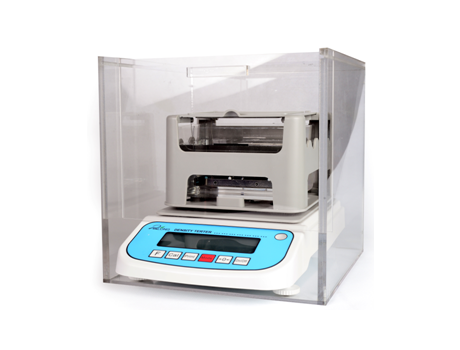

XHS-42 Automatic Densimeter

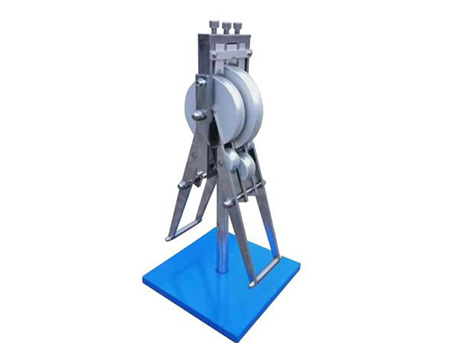

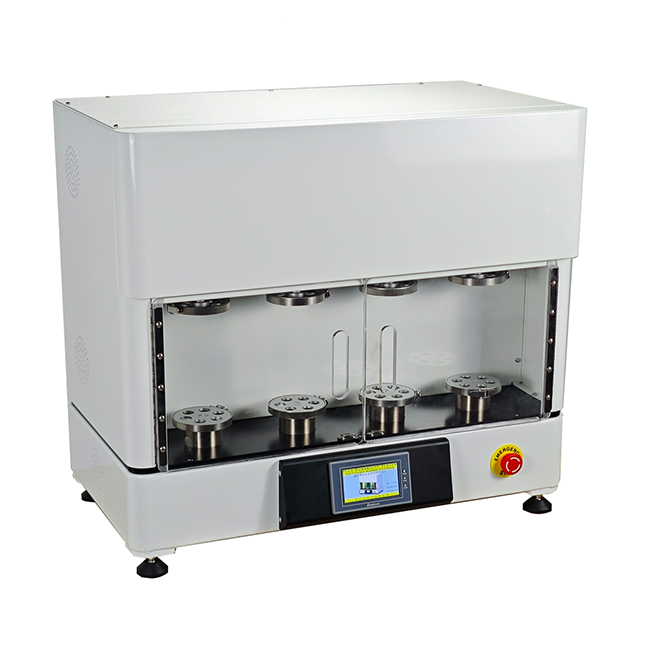

XHS-60 Gelbo Flex Durability Tester

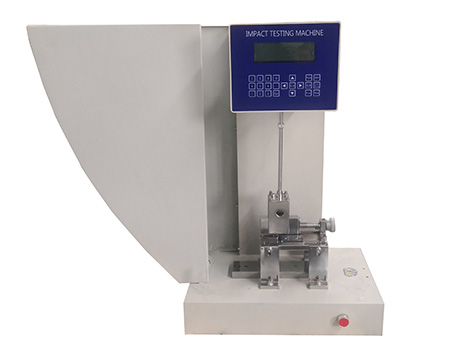

XHS-01 Charpy and Izod Impact Testing Machine

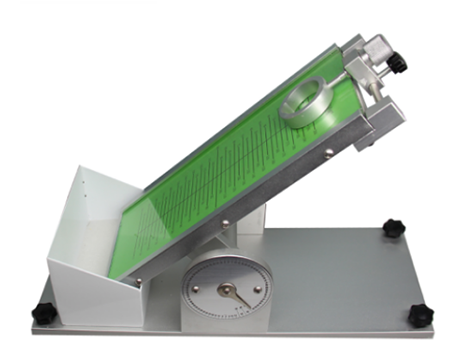

XHS-10 Primary Adhesive Tester
XHS-09 Falling Weight Impact Tester

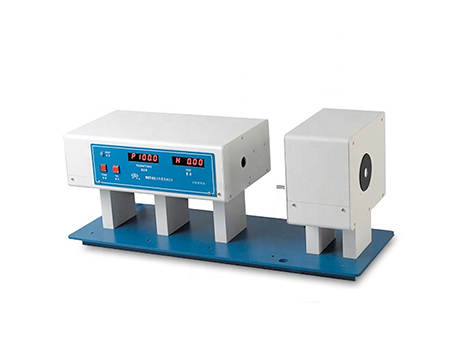

XHS-04B Haze Meter

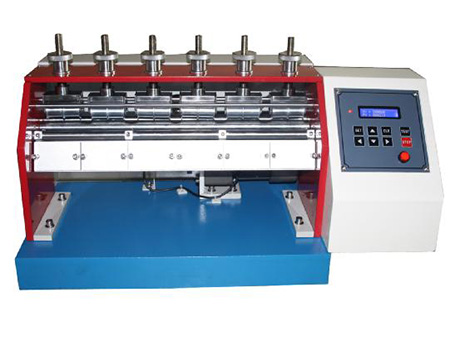

XHS-35 Ross Flexing Tester

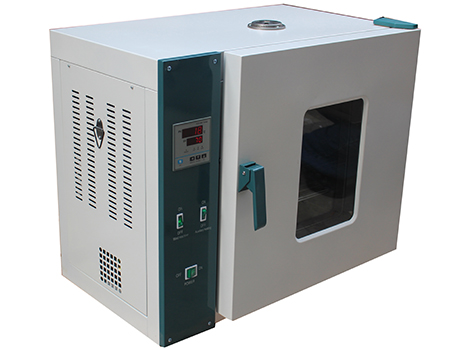

XHS-12 Laboratory Dry Oven
XHS-13 Fogging Tester

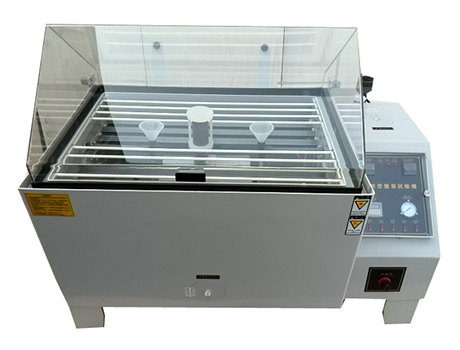

XHS-18 Salt Spray Chamber
XHS-47 Methylene Chloride Tester
XHS-OTR Oxygen Transmission Rate Test System
XHS-37A Mooney Viscometer

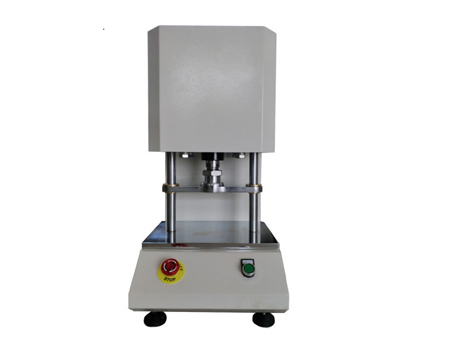

XHS-02A Pneumatic Sample Press
XHS-56 Wallace Rapid Plastimeter

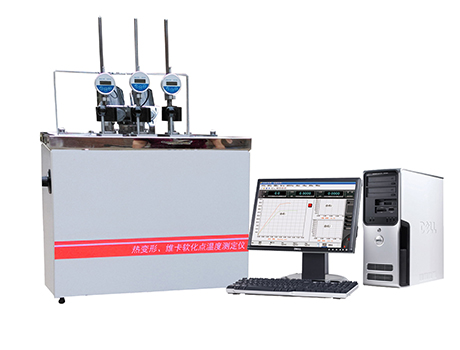

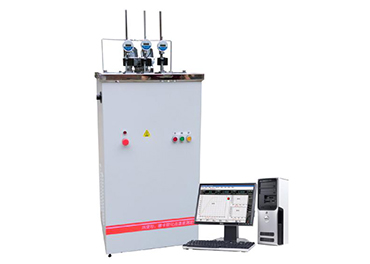

XHS-15A Vicat Softening Temperature and HDT Machine

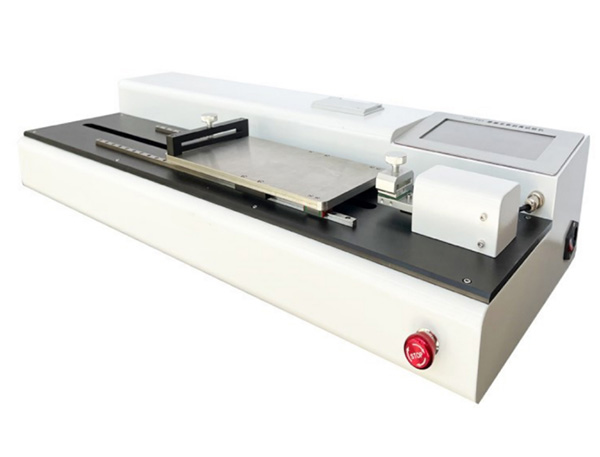

XHS-21 Friction / Peel Tester
XHS-45 Pipe Hydrostatic Pressure Testing Machine

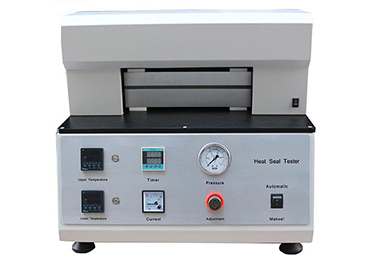

XHS-14 Heat Seal Tester
XHS-37B Rubber Testing Rheometer With Rotorless Curemeter

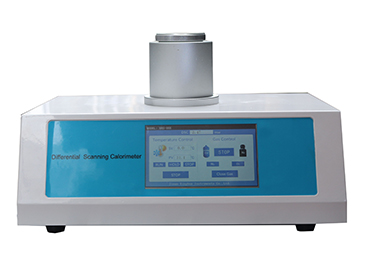

XHS-05 Differential Scanning Calorimeter
XHS-55 Capillary Rheometer

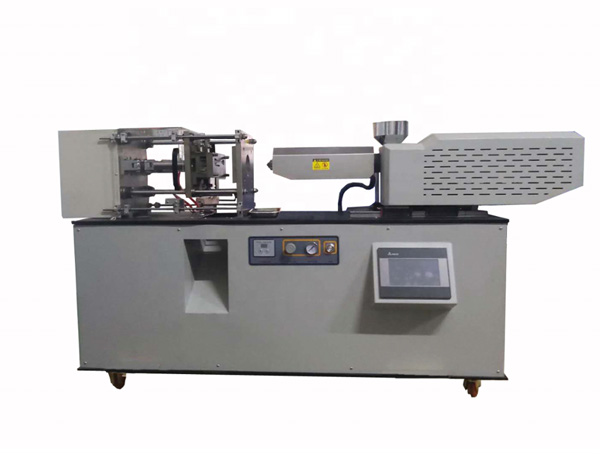

XHS-39A Lab Injection Molding Machine

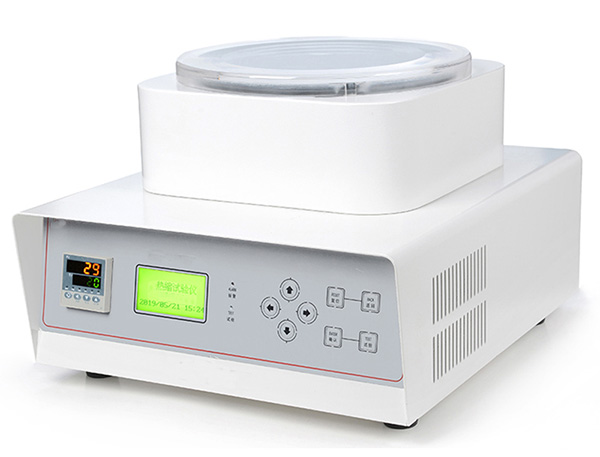

XHS-43 Film Free Shrink Tester
XHS-49 Benchtop Thickness Tester

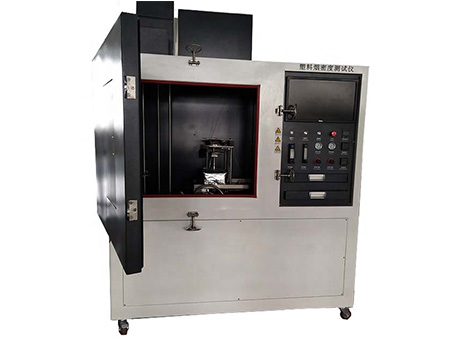

XHS-40 Smoke Desity Tester

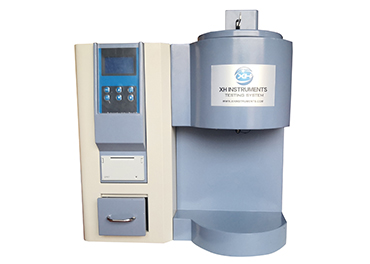

XHS-03 Melt Flow Indexer
XHS-WVTR Water Vapor Transmission Rate Test System

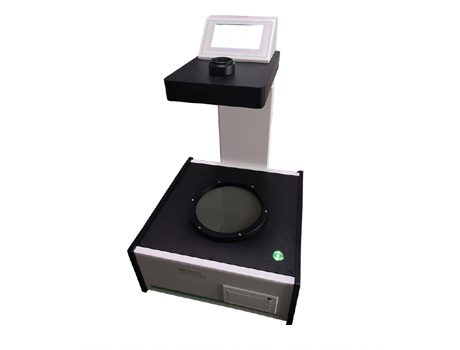

XHS-50 Polarized Stress Tester
XHS-36 Low Temperature Brittleness Tester
XHS-19 SPI Vinyl Plastic Film Flammability Tester

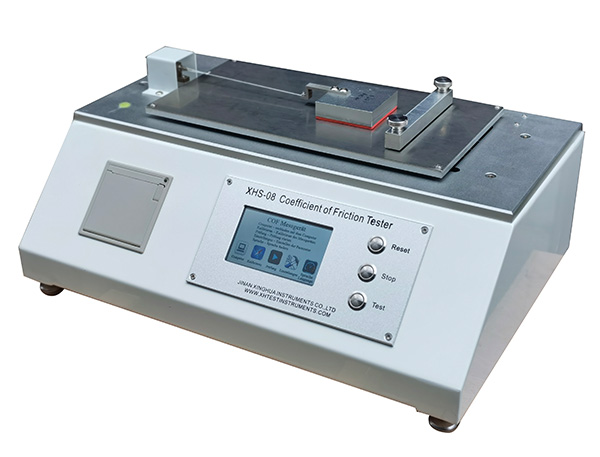

XHS-08 Coefficient of Friction Tester
XHS-07 Oxygen Index Tester
XHS-05Q Carbon Black Content Tester

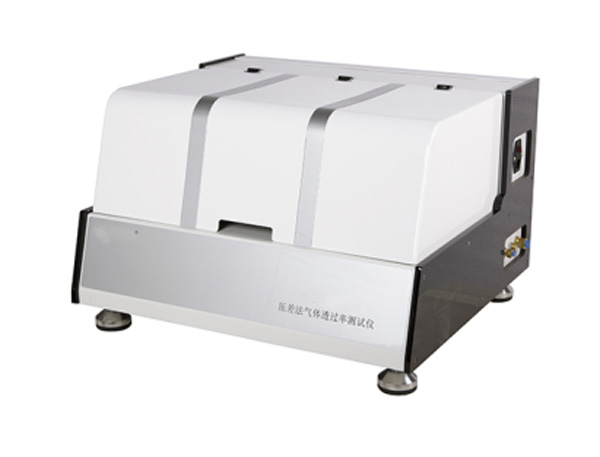

XHS-GT-V1/V3 Gas Permeability Tester
XHS-05S Carbon Black Dispersion Tester
XHS-38 Accelerated Aging Oven
XHS-15B Vicat Softening Temperature and HDT Machine
XHS-04C Haze Meter
XHS-04A Haze Meter

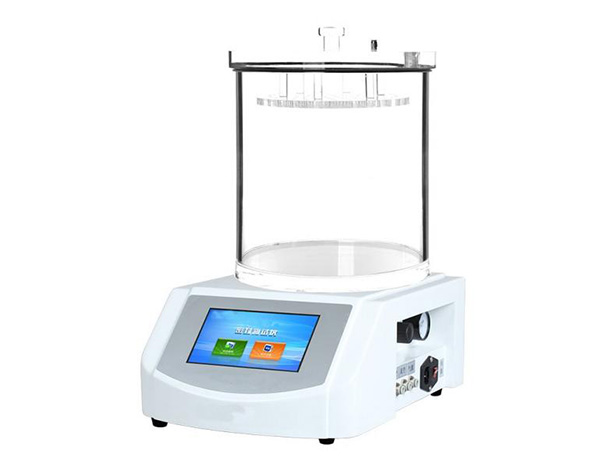

XHS-06 Digital Vacuum Leak Tester

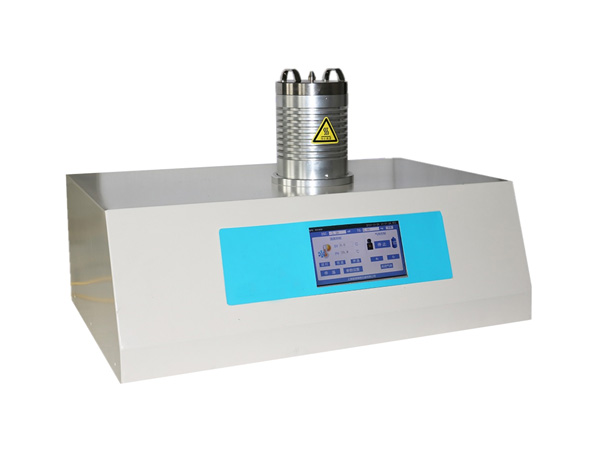

XHS-05T Thermal Gravimetric Analyzer
