XHS-09 Falling Weight Impact Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

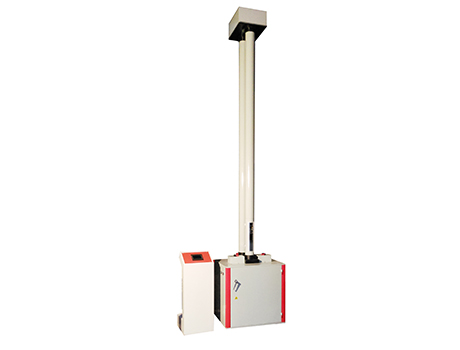

XHS-09 Falling Weight Impact Testing Machine is used for impact test of plastic pipe, sheet metal and products in order to determine Anti-impacts the properties of these materials.

This testing machine adapts PLC control and touch screen operation technology for control part, which can ensure that figure setup, adjusting zero, preset dropping height, raising hammer and dropping hammer automatically, adopting pneumatic technology in preventing secondary impacts, capture rate is 100%.

Test Standards

GB/T 14152, GB/T 10002.1, GB/T 5836.1, GB/T 13664, GB/T 16800, ISO 4422, ISO 3127, BS EN1411, BS EN744

Technical Parameter

Structure	Adopts double pipe structure
Max. Falling height	2000mm
Resolution of displacement	1mm
Height error	<± 2mm
Hammer mass	0.25-16kgs
Noses of the Strikers	d25 . d90
Diameter of Test Pipes	10-400mm or 10-630mm
Power Supply	220V, 50/60Hz Single Phrase
Outline Size	830mm×800mm×3800mm
Machine Weight	550kg
