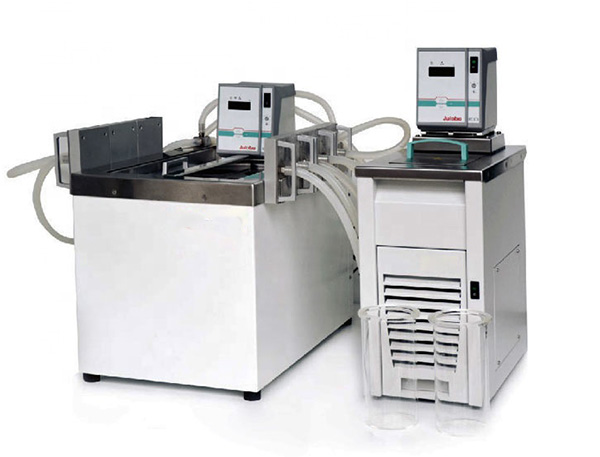

XHS-13 Fogging Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Fogging Tester is applicable in roof lining fogging test of automotives' interior decoration materials, like PVC, textile, nonwoven, and etc, that will volatilize under higher temperature. And roof lining fogging tester can be used to test the fogging of the xenon lights.

Test Standards

ISO 6452,DIN 75201,SAE J1756,QB/T 2728,BS EN 14288, PV 3920,PV 3015,ES-X83231,NES M0161,D45 1727,GM 9305P,TSM 0503G, D451727

Product Features

Wide range and high precision of temperature control device to support the combinations of non-standard test conditions

6 test stations can perform specimen test or blank test simultaneously

This instrument ensures accurate and reliable test data through stable running condition

Cooling device and controller of heating device use Julabo from Germany

Technical Parameter

Temperature Range of High-Temperature Bath	Room temperature+10°C -160°C
Control Accuracy	±0.1°C
Temperature Range of Low-Temperature Bath	-28 -100°C
Accuracy	±0.1°C
Size of High-Temperature Bath	L×W×H:600 mm×425mm×660 mm
Size of Low-Temperature Bath	L×W×H:420 mm×230 mm×610 mm
Net Weight of High-Temperature Bath	48 kg (except the weight of heat conduction)
Net Weight of Low-Temperature Bath	28 kg (except the weight of heat conduction)
Power Supply	AC 220V 50Hz
