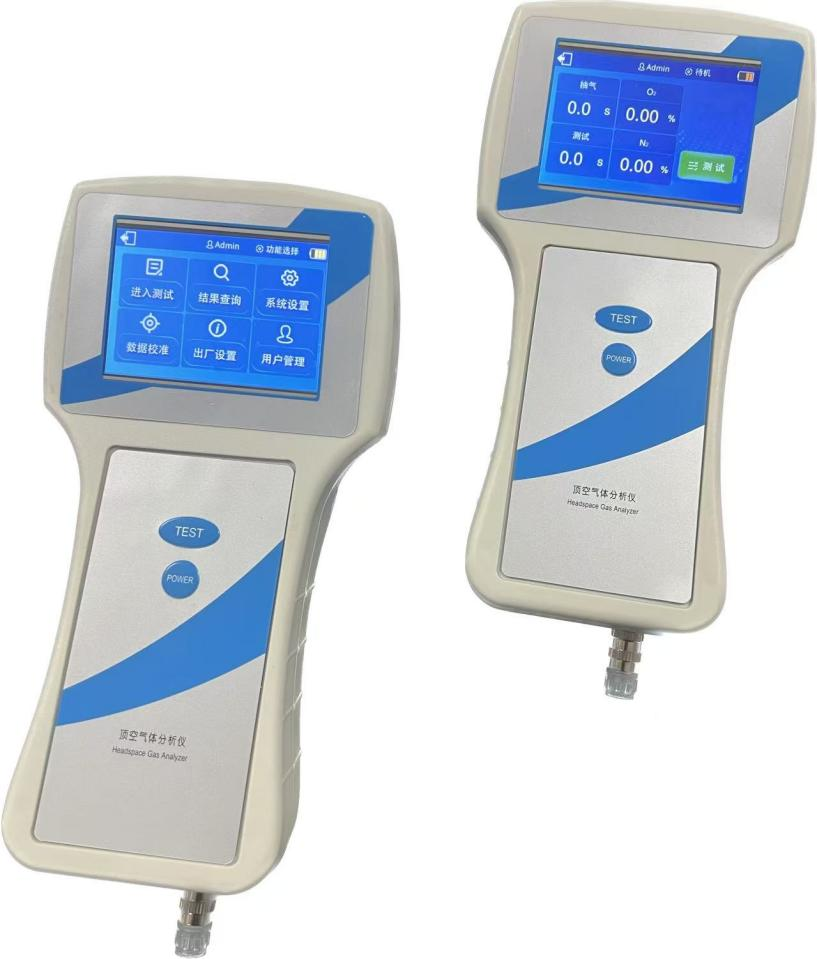

XHS-66 Headspace Gas Analyzer

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

Headspace Gas Analyzer is featured with handheld design and equipped with high precision sensors and air pump supplied by globally well-known manufacturers. It can provide accurate and fast evaluation of the volume of oxygen and carbon dioxide (with optional CO2 sensor) in sealed packages, bottles and cans, etc. Because of its portable design, the instrument can be used to measure the volume and proportion of oxygen and carbon dioxide on production lines, in warehouses or in laboratories, to serve as a guide for production.

Product Features

• Convenient handheld design, single-handed operation, lightweight and portable, suitable for diverse testing requirements.

• 3.5-inch industrial-grade resistive touch screen, one-button operation, intuitive and simple user interface.

• Automatic shutdown function to reduce power consumption.

• One-button automatic calibration function for convenience and speed.

•Uses imported components from world-renowned brands, featuring high testing accuracy, low failure rate, and long service life.

• Quick-plug sampling needle protective cover design effectively ensures testing safety.

• Automatic data storage and power-off memory function prevent data loss.

• Built-in data storage for up to 2000 entries, meeting the needs of large data volume storage.

• Built-in pressure sensor for accurate measurement of the internal vacuum degree of the sample (optional).

• Complies with China GMP requirements for data traceability, meeting the needs of the pharmaceutical industry (optional).

• Equipped with a wireless micro printer for convenient printing of test results anytime (optional).

Technical Parameter

Testable Gases	O2 (Standard)	CO2 (optional)
Test Principle	Electrochemistry	Infrared Absorption
Sensor Service Life	2 Years (in air)	>15 Years
Test Range	0 ~ 100%	0 ~ 100%
Resolution	0.01%	0.01%
Test Accuracy	±0.2%	± (0.03% + displayed value * 5%)
Sampling Volume	<3 mL (Standard Mode)	15 mL (Standard Mode)
Instrument Dimension	250 mm (L) × 120 mm(W) × 85 mm(H)
Power Supply	AC 220 V 50 Hz
Net Weight	0.7 kg
