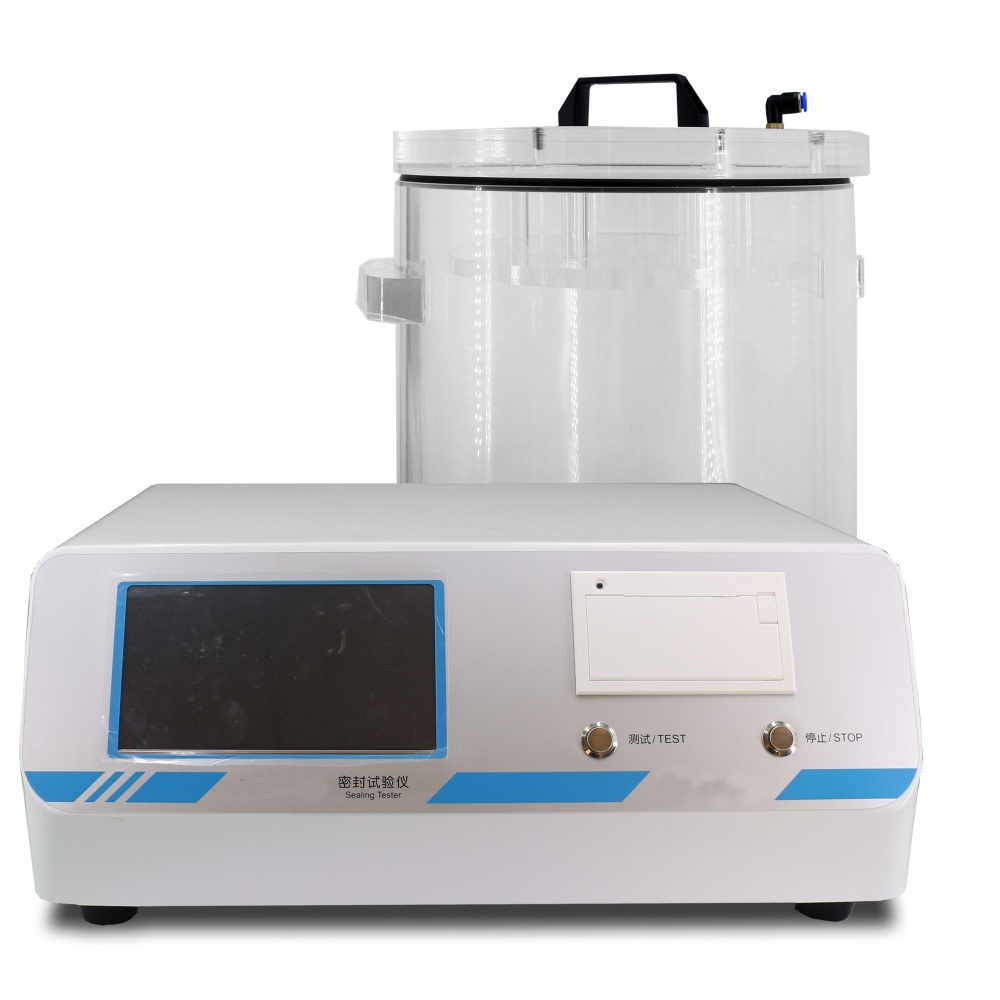

XHS-06BT Seal Tester is professionally designed for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products. The instrument also can be used to test seal performance of specimens after falling and compression tests.

1】 Microcomputer control, adjustable test parameters, fully automated test process;

2】 The 7 inch LCD touch screen displays the testing process, with parameters such as pressure setting, holding time setting, and real-time pressure displayed simultaneously;

3】 PVC operation panel, equipped with physical buttons for testing and stopping, easy and convenient operation, and metal physical buttons that are efficient and durable;

4】 The sealing barrel material adopts imported high-quality organic glass pipes, with a wall thickness of 15mm, the highest in the industry;

5】 The holding time, testing pressure, and pressure difference can all be set in advance to achieve one click operation during the testing process;

6】 Precision imported pneumatic components with superior sealing performance and more reliable quality;

7】 There are two testing modes for instrument configuration, single point pressure mode and multi-point incremental pressure mode;

8】 During the experiment, automatic constant pressure air supply is carried out based on the pressure difference, without the need for manual operation;

9】 Automatic blowback unloading pressure at the end of the experiment, saving more operation time;

10】 Imported pressure sensor, built-in pressure calibration module and support for multi-point pressure calibration, convenient for third-party calibration;

11】 Multiple pressure overload and electrical safety protection ensure the safety of instruments and operators;

12】 The instrument comes with a vacuum gas filtration device and a compressed air filtration device. The external device is convenient for draining water and cleaning impurities, effectively ensuring the safe operation of internal components of the machine;

13】 The instrument has the functions of judging, saving, and querying test results, and is equipped with a thermal micro printer. The test results can be directly output and printed;

 14】 The material of the instrument host box is processed from stainless steel and treated with high-temperature spray coating technology on the surface, which meets the cleanliness requirements of the pharmaceutical industry.

15】The instrument complies with the GMP Level 3 authorization login requirements for pharmaceutical packaging;
