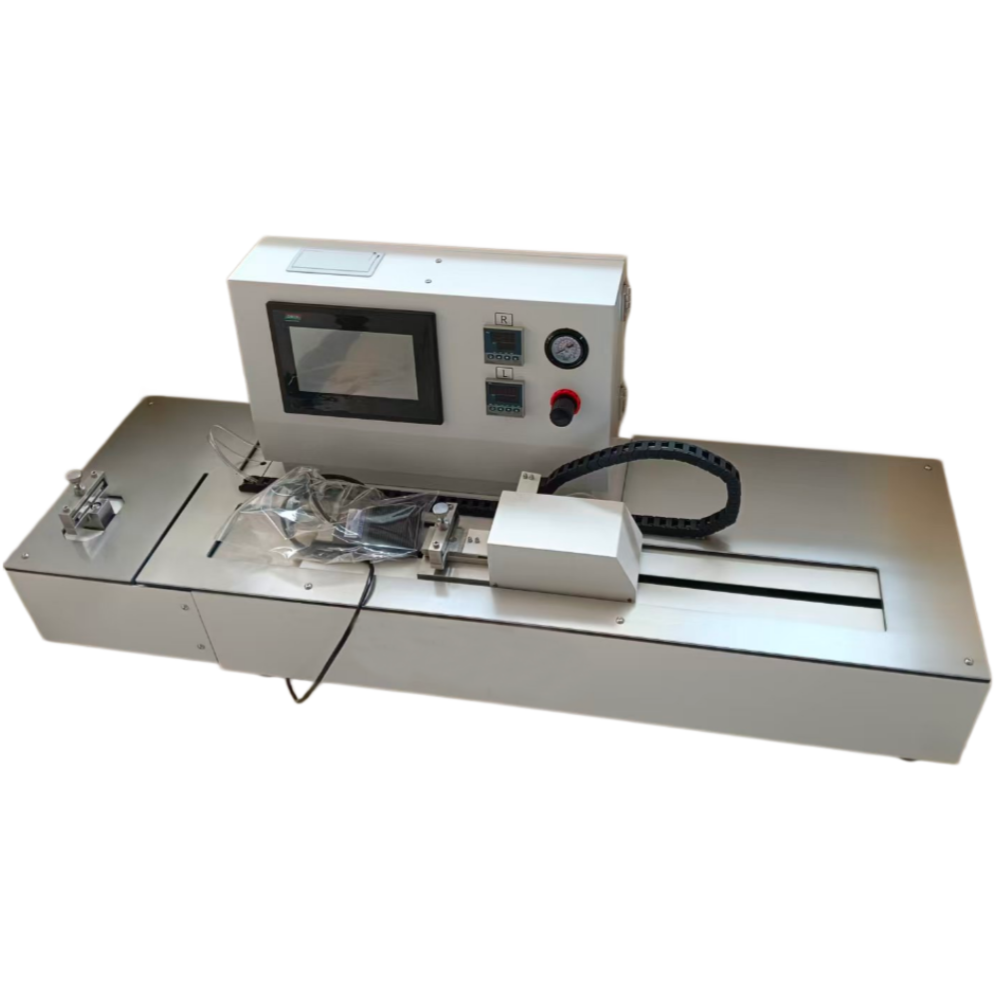

XHS-14C Hot Tack and Heat Seal Strength Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Heat Seal Strength Tester is designed for hot tack and heat seal performance tests for plastic films, laminated films and other packaging films. Meanwhile, it can be used for peel, shear, tension and other test items for adhesives, adhesive tapes, laminated films, plastic films, paper and other flexible materials.

Test Standards

ASTM F1921, ASTM F2029

Product Features

1. Hot tack, hot sealing, peeling and tensile test items are integrated in one instrument.

2. Temperature control technology can quickly reach the set temperature, effectively avoiding temperature fluctuations

3. Four levels of force range and six levels of test speed to meet different testing requirements

4. The hot tack test adopts fully automatic injection, simplifies the operation, reduces errors, and ensures data consistency.

5. Automatic reset, fault prompt, overload protection, travel protection and other designs ensure safe operation

6. Anti scald safety design enhances operational safety

Technical Parameter

Sealing Temperature	Room temperature - 250°C
Temperature Fluctuation	±0.2°C
Temperature Accuracy	±0.5°C
Dwell Time (Heat Seal)	0.1 - 999.9 s
Dwell Time (Hot Tack)	0.1 - 999.9 s
Sealing Pressure	0.05 MPa - 0.7 MPa
Sealing Area	100 mm x 5 mm
Sealing Jaw	Double sealing
Gas Supply Pressure	0.5 MPa - 0.7 MPa (outside of supply scope)
Port Size	Φ4 mm PU Tubing
Capacity Range	30 N ( 50 N,100 N and 200N are optional)
Accuracy	±1%
Resolution	0.01 N
Test Speed	150mm/min, 200mm/min, 300mm/min, 500mm/min 1500mm/min, 2000mm/min adjustable
Power Supply	220VAC 50Hz / 120VAC 60Hz
Dimension	1120 mm (L) × 380 mm (W) × 330 mm (H)
Weight	45Kgs
