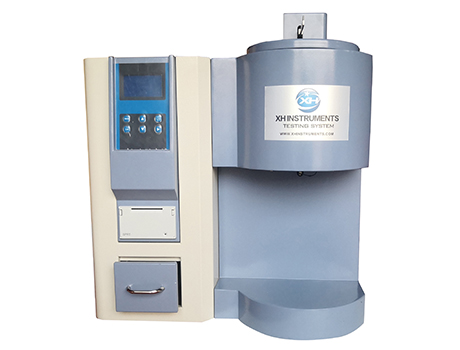

XHS-03 Melt Flow Indexer
Product Category:Plastic and Rubber Testing Equipments
XHS-03 LCD Melt flow indexer is used to determine the melt mass-flow (MFR), the melt volume-flow rate (MFV) and the melt density of thermo resin,it is not only fit for the engineering plastics of polycarbonate, nylon and fluorine plastics, etc, whose melt temperature are higher,but also fit for the plastics tests of polyethylene, polystyrene, polypropylene, ABS resin and polyformaldehyde resin, etc, whose melt temperature are lower, it is widely applied to the fields of plastics materials, product, petrochemical, etc.It also the colleges, scientific research unit and commodity inspection department.
GB 3682,ISO 1133, ASTM D 1238, ASTM D 3364, DIN 53735, UNI-5640, JJB878
XHS-03 LCD Melt flow index is designed and manufactured according to the latest standards of GB and ISO; it summarizes the strengths of machine type of home and abroad. structure is compact,appearance is beautiful,operation is easy,performance is advance,quality is reliable,since it adopts the standard module combination structure,it can be upgraded and changed the type directly,in order to maintain the advance of the accurate testing machine synchronously.
XHS-03 Melt flow rate apparatus adopts PID temperature control, digital display, print out results with thermal printer, it can cut material manual or auto., has two measuring method, MFR and MVR.
Measuring range | 0. 01-600.00 g/10min (MFR) |
0. 01-600.00 cm/10min(MVR) | |
0.001-9.999 g/cm (melt density) | |
Measure rate | 0.001S |
Temperature range | 50-400C |
Temperature precision | +/-0.5C resolution: 0.1C |
Base weight | 0.325Kg |
Combined Load | 0.325Kgs, 1.2Kgs, 2.16Kgs, 3.8Kgs, 5Kgs, 10Kgs, 12.5Kgs, 21.6Kgs |
Accuracy | 0.5% |
Cleaning accessories | clear material pole |
Measuring method | MFR MVR/ DENSITY |
Heating Power | 550W |
Power Supply | 220V, 50Hz, Single Phrase |
Dimension | 600mmx400mmx500mm |
Weight | 85Kgs |
