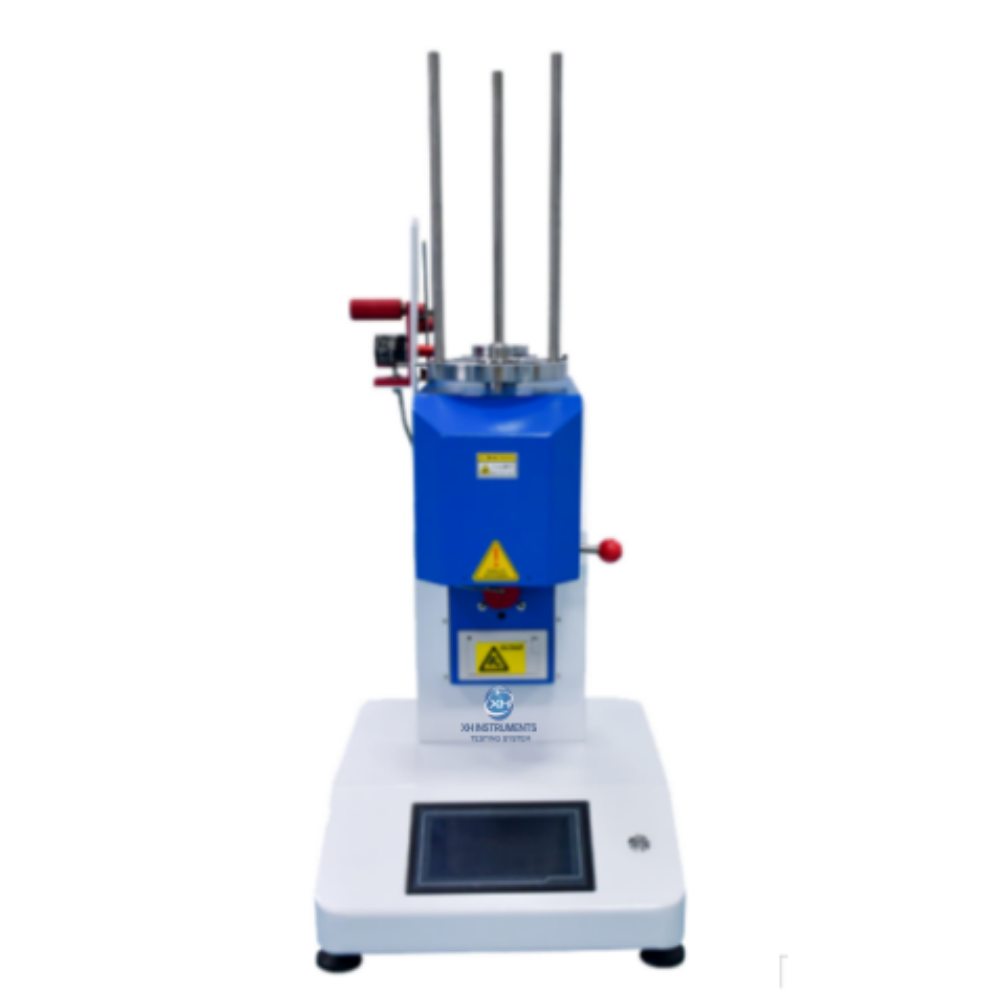

XHS-03AT Melt Flow Indexer

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

This is a high precision automatic melt flow rate tester, used to determine all kinds of plastics, resins in viscous flow state through a certain temperature and load, every 10min through the standard mold melt flow rate MFR/MVR value.

It is suitable for polycarbonate, fluorine plastic, nylon and other engineering plastics with higher melting temperature, but also suitable for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin and other plastics with lower melting temperature test.

The equipment is widely used in plastic production, plastic products, petrochemical and other industries as well as the relevant colleges and universities, scientific research units and commodity inspection departments.

Test Standards

ISO 1133,ASTM D1238,GB/T3682，JIS K7210,BS2782

Product Features

1. Two-stage temperature control mode, 2 sets of platinum resistance sensors, 2 heating sleeves for separate temperature control, high-precision intelligent PID control, temperature rise slope, namely, temperature rise speed can be adjusted.

2. The temperature resolution is 0.1℃, the temperature uniformity is 0.5℃, the temperature fluctuation within 24 hours is not more than 0.5℃, the displacement sensor resolution is 0.01mm.

3. Overtemperature protection device

4. Manual/Automatic cutting, cutting time (0~999), cutting times (0~999) can be set arbitrarily.

5. The test can choose the mass method, or the volume method, or both test methods, and the flow rate ratio can be calculated. Both methods start the test when the piston rod is moved to a certain position.

6. Built-in temperature stability warning alarm, and add 240 seconds (GB3682 provisions) material preheating seconds countdown, after the end of the countdown, the prompt sound, can also set the American standard (ASTM) and other preheating time.

7. Built-in plastic material melt index test conditions, convenient for customers to use at any time, reduce the tedious workload, and store the last test conditions and results.

8. Built-in micro printer for easy printing of test data.

9. High precision touch screen controller, 7 inch touch screen, can store and print the latest test conditions and data, test print menu Settings include test time (system default), operator, material name, test method, test conditions (temperature, weight, cutting time interval), test result data.

10. Reserved RS232 interface or USB interface to connect to the computer, through the computer control instrument operation and test data transmission and saving to the computer.

Technical Parameter

Model No.	XHS-03AT-1	XHS-03AT-2
Load Weight Method	Electronic	Automatic
Display	7 Inch touch Screen	7 Inch touch Screen
Measurement Range	MFR：0.1-150g/10 min MVR：50-5000cm³/10 min
Load	8 Grade Accuracy: ±0.5%
Cutting Method	Manual/Auto
Working Chamber	Made of Hastelloy C-27
Capillar Diameter	Φ2.095±0.005mm (made of tungsten carbide)
Discharge port length	8.000±0.025mm
The diameter of the charging cylinder	Φ9.550±0.025mm
Diameter of piston rod	Φ9.474±0.007
Temperature range	R.T.-450℃
Temperature display resolution	0.1℃
Temperature maintenance accuracy	- in the range of 50...300°C ±0.1 - in the range of 300...350°C ±0.2 - in the range of 350...450°C ±0.3
Displacement Accuracy	0.01mm Omron Encoder
Temperature recovery time	≤4min
Timing range	0-999s
Timing resolution	0.001s
Cutting Interval time	1-999s
Output	Thermal Printer, PC
Dimension	L27W39H56cm	L27W39H66cm/
Weight	35Kgs	35Kgs
Power Supply	220V, 50Hz, Single Phrase
