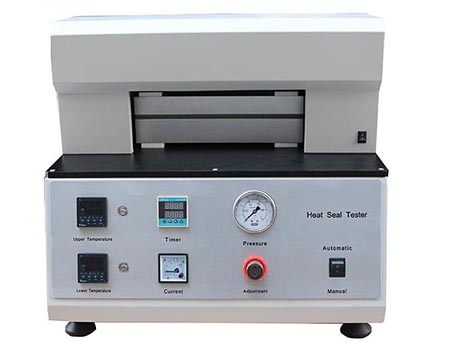

XHS-14 Heat Seal Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Heal seal capacity is one of most important performance in plastic package. The Heat Seal Tester requests and takes heat-press seal method to test heat-seal temperature, time and pressure of plastic film material, soft packaging laminated film and other laminated film.

Test Standards

ASTM F2029, QB/T 2358(ZBY 28004),YBB 00122003

Product Features

1. Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation

2. Wide range control of temperature, pressure and time that meet various test conditions

3. Manual or pedal switch, as well as anti-scald design provides convenient and safe operating environment

4. Dual underneath and closed loop-type of gas cylinders ensure even pressure.

5. The aluminumheat sealing jaws ensure uniform heat spreading along the sealing surface.

6. Independent temperature control of the upper and lower jaws.

7. Aluminum control panel make machine beautiful.

Technical Parameter

Model	A	B
Seal Temperature	Room temperature-250C (resolution: ±0.1C)
Dwell Time	0.01s-99.99s
Dwell Pressure	Single heating surface and double heating surface
Seal Surface	300 mm x 10 mm	40mmx10mm 5 Point
Dimension	550mmx 360mmx 460mm	600mmx360mmx470mm
Weight	25Kgs	35Kgs
Power Supply	AC 110V/ 220V 50/60Hz
Standard Configuration	Mainframe, Pedal Switch, Air Pipe
Customers will need to prepare for gas supply.
