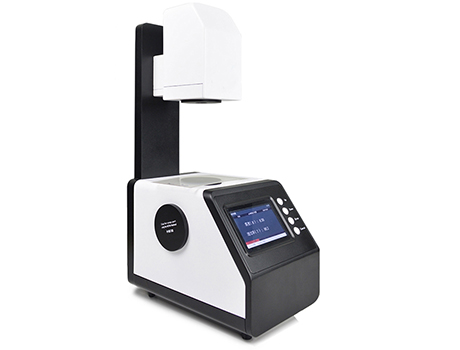

XHS-04A Haze Meter

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Hazemeter : As a computerzied automatic measurement instrument, transmittance & haze instrument is designed according to ASTM D1003-2007. The instrument has a wide range of applications in the fields of national defense, scientific research and industrial production. It is used to perform the transmisstance or/and haze test on all transparent and translucent plane parallel injector, such as plastic plates, sheets, plastic films and sheet glass.

Test Standards

ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136

Product Features

1. Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

3. Open measurement area, no limit on sample size.

4. Instrument is with 5.0 inches TFT display screen with good human-computer interface.

5. It can realize both horizontal and vertical measurement to measure different kinds of materials

6. It adopts LED light source whose lifetime can reach 10 years.

7.No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

8. Small size and light weight which makes it much easier to carry.

Technical Parameter

Light Source	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08
Parameters	HAZE, Transmittance(T)
Spectral Response	CIE Luminosity function Y/V (λ)
Geometry	0/d
Measurement Area/ Aperture Size	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	<=0.1
Sample Size	Thickness <=145mm
Memory	20000 value
Interface	USB
Power	DC24V
Working Temperature	10-40 ℃ (+50 – 104 °F)
Storage Temperature	-20-50℃ (+32 – 122 °F)
Size (LxWxH)	310mm X 215mm X 540mm
Standard Accessory	Free PC software (Haze QC)
