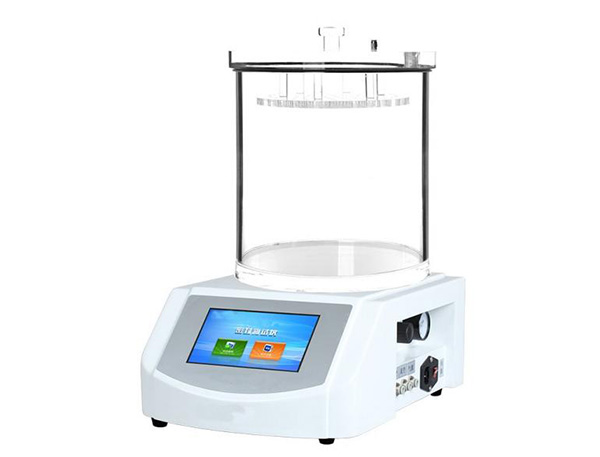

XHS-06 Digital Vacuum Leak Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

XHS-06 Digital Vacuum Leak Tester is professionally designed for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products. The instrument also can be used to test seal performance of specimens after falling and compression tests.

Principle

Firstly submerge the specimen in the water within the vacuum chamber, and then evacuate the vacuum chamber to form differential pressure between the inside and outside of specimen. The leakage property could be obtained by observing the steady progression of bubbles from the specimen and how the specimen expands and restores to its original shape after vacuum release.

Test Standards

ASTM D3078

Product Features

Fully test process, one key to finish the test.

Built in high precision sensor, fast response.

Various test model selection to meet different standard requirement.

Preset multi group test parameters under test mode to make fast test.

Double air circuit design to make more accurate test,

Can save and query 500 test results, has statistic function.

High wall thickness of vacuum chamber.

Equipped with pressure adjustable system, easy operation and maintenance.

Technical Parameter

Vacuum Degree	0 - -90 KPa
Accuracy	0.5% FS
Response Time	<5ms
Resolution	0.01Kpa
Display	7 Inch Color Touch Screen
Vacuum Chamber Effective Sizes	Φ270 mm x 210 mm (H) (standard) Φ360mm x 585mm (H) (optional) Φ460 mm x 330 mm (H) ((optional)
Gas Supply Pressure	0.2-0.7Mpa ((outside of supply scope)
Port Size	6 mm PU Tubing
Main Frame Dimension	430(L)×300(B)×165(H)mm
Power Supply	AC 220V/110V, 50Hz/60Hz
