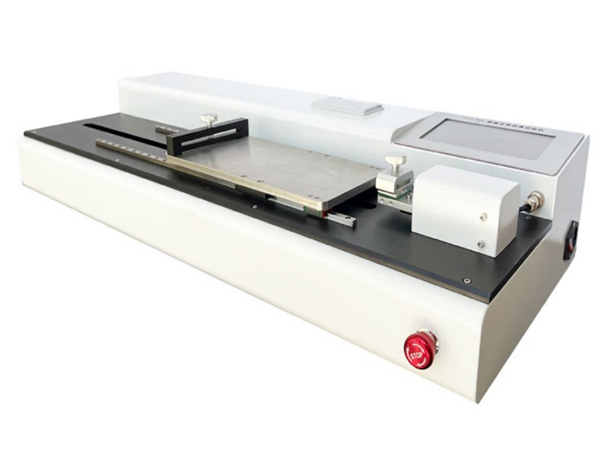

XHS-21 Friction / Peel Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

XHS-21 COF/Peel Tester can be used to test coefficient of static and kinetic friction of plastic films, sheets, foils, paper, cardboard, woven bags, fabric (fabric style test), metal-plastic composite strip/belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protection films.

Test Standards

ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549, GB 10006,GB/T 2790,GB/T 2791,GB/T 2792.

Product Features

Two test modes are available i.e. coefficient of friction and 180° peel test.

The instrument shell is made of metal baking varnish, equipped with a special aluminum panel, and imported metal buttons.

Adopt imported electronic components to ensure high performance.

Test speed can be set and adjustable.

The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors

The instrument conforms to multiple ISO, ASTM and GB standards

High Precision temperature controller to test sample under different temperature accurately.

Force measuring system is supplied by global well-known supplier, the testing accuracy is higher than 0.5%FS, with better repeatability, multiple test ranges for choice

Intelligent designs including position restriction, overload protection and auto reset guarantee the safe operation

Professional software provides test results curve statistical analysis, the test results accurately and intuitively presented.

Test platform has heating function

RS 232 interface for data transmission and external connection

Technical Parameter

Testing Range	0-5N (0 -10N, 0 -30 N is optional)
Accuracy	±0.5% FS
Resolution	0.001N
Stroke	10-160mm (adjustable)
Sled	200g (other weights is optional)
Testing Speed	50-500mm/min (adjustable)
Platform Temperature Range	RT+5C-50C, temperature accuracy:±0.5C
Power	AC 220V 50Hz
Dimension	760 mm(L)×360 mm(W)×300mm(H)
Configuration	Main Frame, Friction Test Fixture, Peel Test Fixture, 200g Sled, PC Software

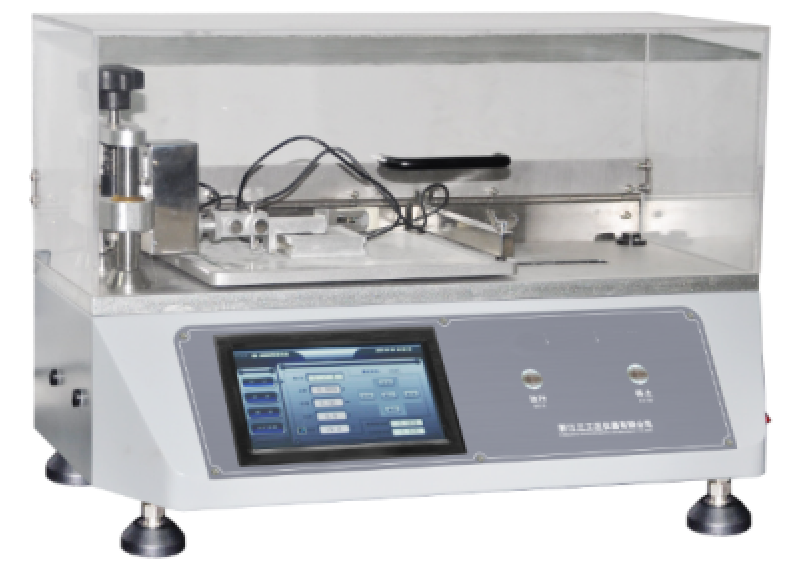

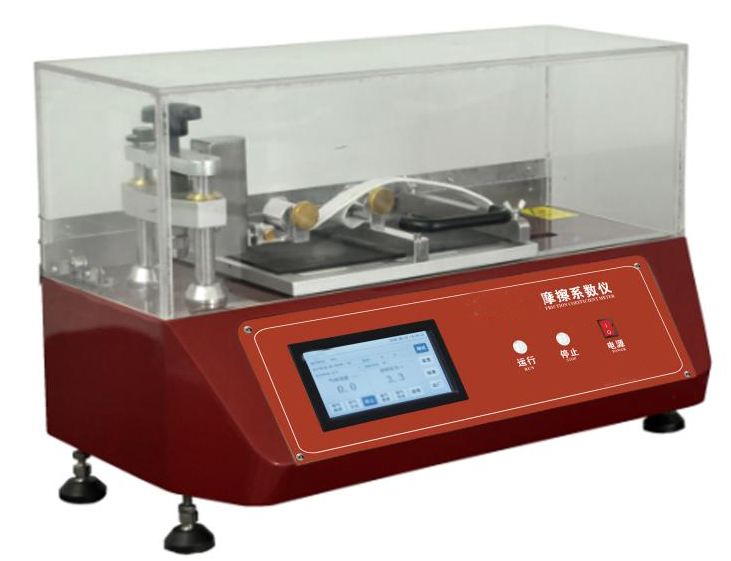

Relative Products
