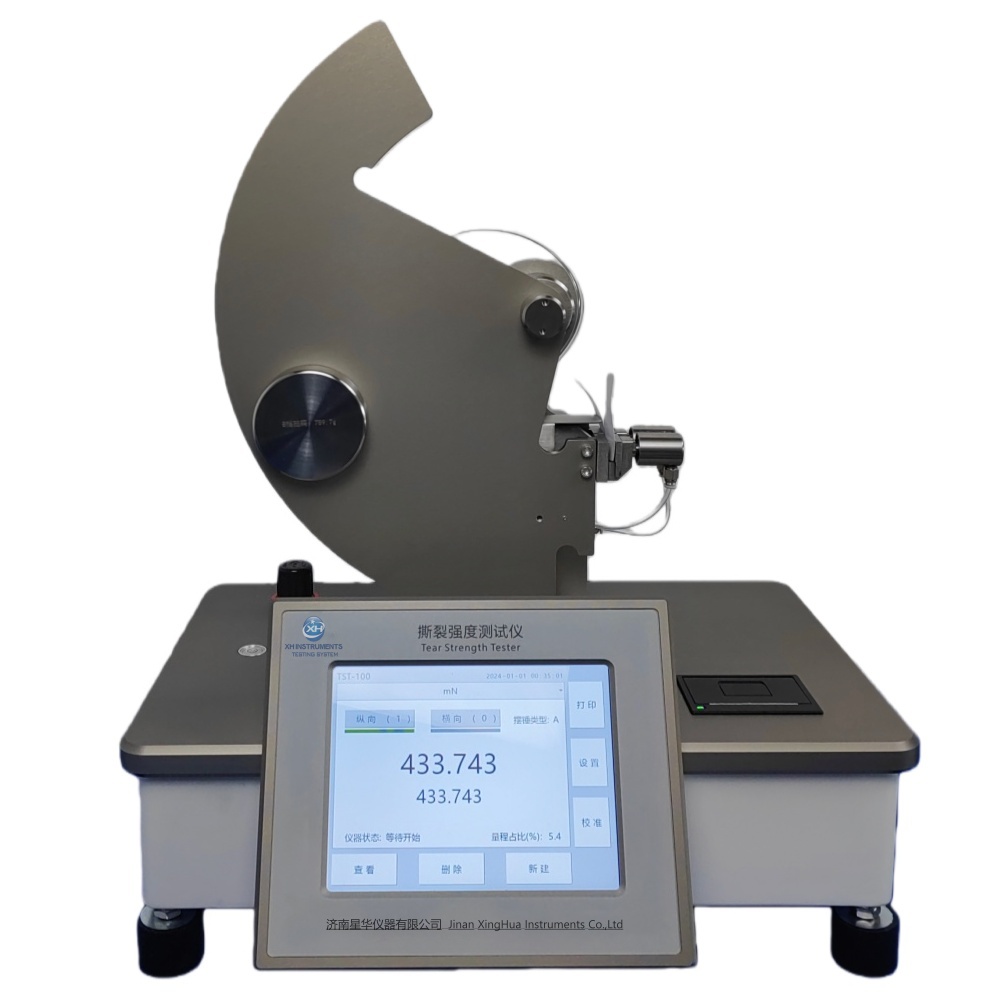

XHV-01D Elmendorf Tearing Strength Tester

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

XHV-01D Elmendorf Tearing Strength Tester is applicable in the tearing test of paper, cardboard, etc.

Test Standards

ISO1974, TAPPI414

Product Features

High Accuracy, resolution can reach 0. 1mN, ensure testing accuracy is within ±1%, user can use weights to verify the test results.

Fully automatic test: automatic clamping, cut, pendulum release and reset.

Automatic calibration of tear force angle, supports weight calibration, ensuring data reliability.

Micro-printer, fast and clear printing.

USB output report

Double button operation for safety purpose.

Technical Parameter

Scale	A: 0-8000mN B: 8000-16000mN
Resolution	0. 1mN
Testing accuracy	±1%
Tearing force arm	104±1mm
Tearing initial angel	27.5°±0.5 °
Tearing Length	43±0.5mm
Color Touch Screen Operation	8.4 Inch
Printer	Thermal Printer
Air Pressure	0.2-0.5Mpa
Dimension	510 ×400×565mm
Power	220V, 50Hz
Standard Configuration	Main Frame, calibration weight, thermal printer. Paper rolls
Customer Prepare Air Source
