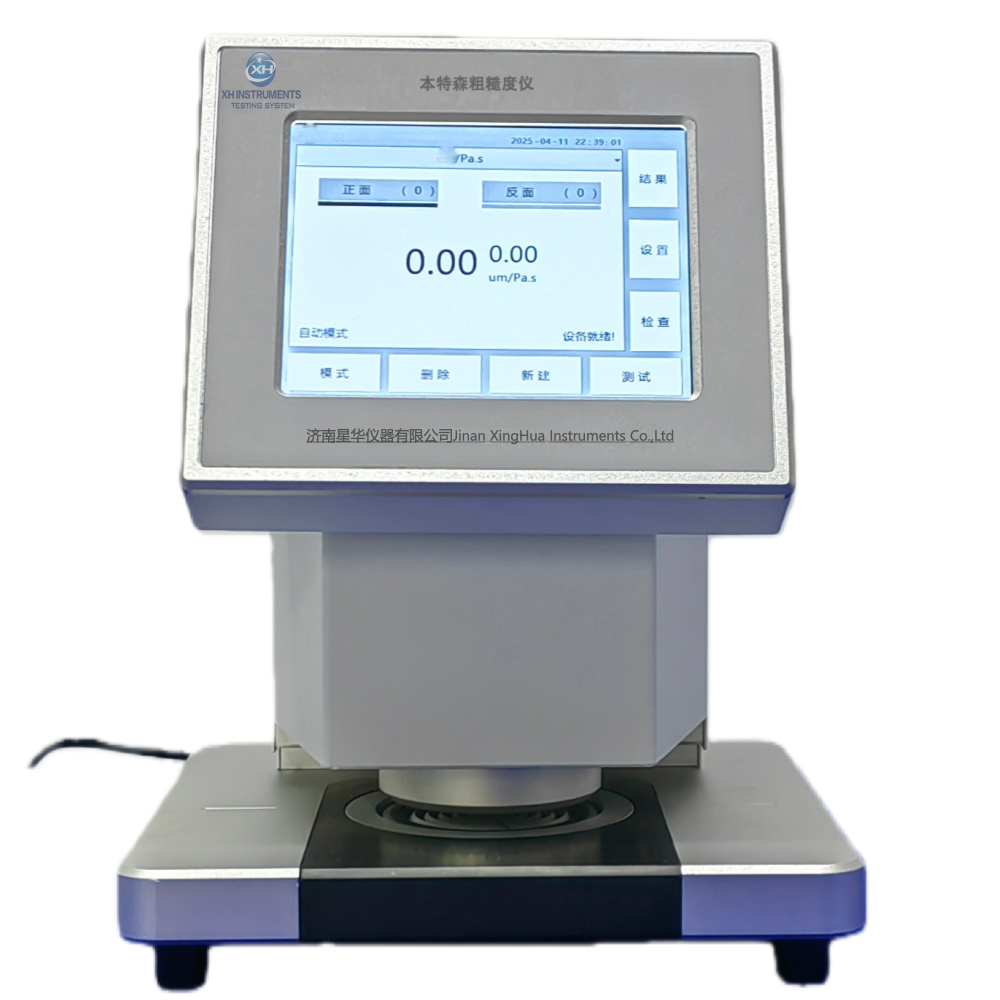

XHV-26BT Bendtsen Roughness Tester

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

XHV-26BT Bendtsen Roughness Tester measures paper and cardboard surface roughness using the air leakage method.

The device use a metal ring with a defined measurement area, delivering a weak compressed air flow.

The amount of air that leaks indicates surface roughness – the more air leakage, the rougher the paper surface, meaning its smoothness is lower.

Test Standards

BS 4420, DIN53108, ISO8791-2, SCAN P21, SCAN P84, NEN2012,NFQ 03-076,APPITA1301.439

Product Features

XHV-26BT Bendtsen Roughness Tester meets the high precision requirements of daily testing,as well as new and old testing standards.

Technical Parameter

Measurement Range	50-3500ml/min (Traditional Bendtsen); 50-6000ml/min (compensated Bendtsen)
Operating system	8.4-inch color touchscreen; paper front/back switching test; one-click switching of main interface and result statistics
Test mode	Automatic and manual test mode switchable (Automatic test: Starts when paper is detected)
Language mode	Chinese & English toggle
Measurement time	2-10 seconds adjustable
Repeat measurement	1-10 seconds adjustable
Clamping pressure	98kPa
Test pressure	1.47kPa (0.5-1.9kPa adjustable)
Test results	Traditional roughness; pressure drop compensation roughness; maximum value; minimum value; average value; standard deviation
Instrument power	100W
Instrumentation gas requirement	Instrumentation gas > 0.2MPa; measurement gas pressure: 10-100kPa
Gas consumption	0.2m³/h
Data output	USB data output
Data Print	Thermal printer
Power supply	AC 220V±10V 50Hz
Accessories	1 set of calibration nozzle kit; 1 power adapter; 1 USB flash drive
