XHV-02A Paper Bursting Strength Tester
Product Category:Paper Tester
Paper Bursting Strength Tester conforms to relevant standards .It uses pneumatic clamping sample , digital display and applies to measure bursting strength of paper , corrugated cardboard, leather, fabric and other sheet materials .
ISO 2758, ISO 2759, JIS-P8112, L1018, ASTM-D2210, TAPPI-T403
1. Adopt pneumatic clamping sample and USA microcomputer control technology, color touch screen display and the functions of test data processing and printout , also can display test curves.
2. Use stainless steel measurement head, precision screw driven, Aluminum-alloy panel, good quality copper oil cylinder.
3. Use Silicon oil as the driving force to break the specimen to keep mahine always clean.
4. When the specimen is broken, it automatically stores maximum.
5. It have statistic function.
6. Modern design concept of electro-mechanical integration , it has compact structure ,elegant appearance and convenient maintenance.
7. Have three units, Kpa, Psi and kg/cm2
Model No.
|
XHV-02A |
XHV-02B |
Test specimen | Paper | Corrugated Board |
Power Supply | Power:220V±10 50HZ | |
Circumstance Temperature C | 20±10 | |
Relative Humidity % | < 80 | |
Hydraulic oil | Silicon Oil 85%, distilled water 15% | |
Horsepower | Shockproof motor 1/4HP | |
Induction way | Pressure converter | |
Indicating way | Touch screen display | |
The Diameter of upper Platen hole mm | 30.5±0.05 | 31.5±0.05 |
The Diameter of Lower Platen hole mm | 33.5±0.05 | 31.5±0.05 |
The dimension of rubber film mm |
Thickness 0.8---0.9 | The height of middle bulge 2.5±0.2 The height of middle bulge 27.8 |
The resistance of rubber film mm | When raise 9mm,20-40 | When raise 10mm,170-220 When raise 18mm,250-350 |
The tension between two plasten Kpa | ≥430 | ≥690 |
Testing Range Kpa | 70-1570 | 250-5600 |
Resolution Kpa | 0.1 Kpa | 0.1Kpa |
Oil ml/min | 95±15 | 170±15 |
Dimension | 500×300×540 mm | |
Weight | 50kgs |
XHV-13 Bekk Smoothness Tester
XHV-43A Diaper Permeability Tester
XHV-12 Cobb Moisture Absorption Tester

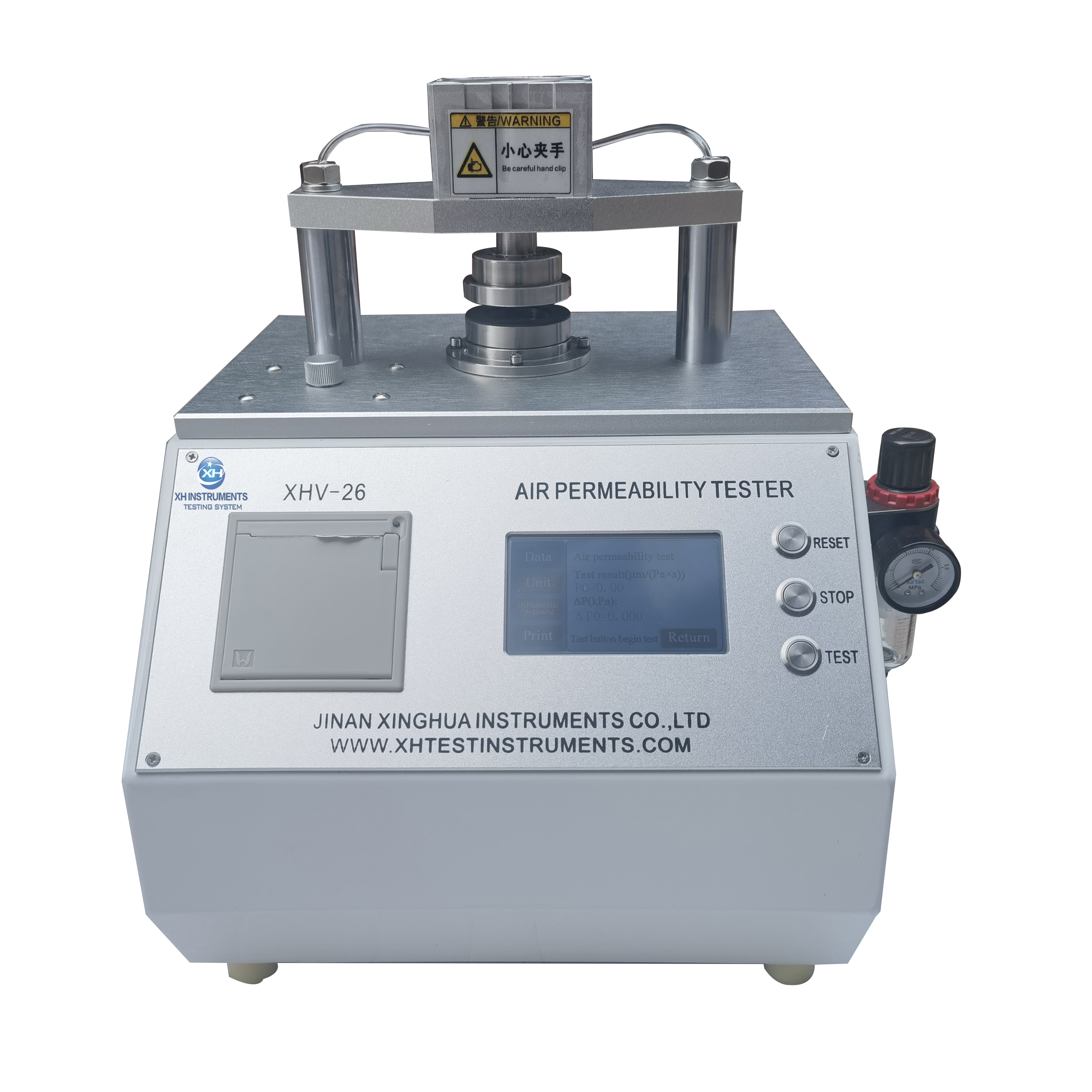

XHV-26 Paper Air Permeability Tester
XHV-03B Short Span Compression Tester
XHV-11 Stroboscope
XHV-42 Diaper Leakage Tester
XHV-05 Ink Abrasion Tester

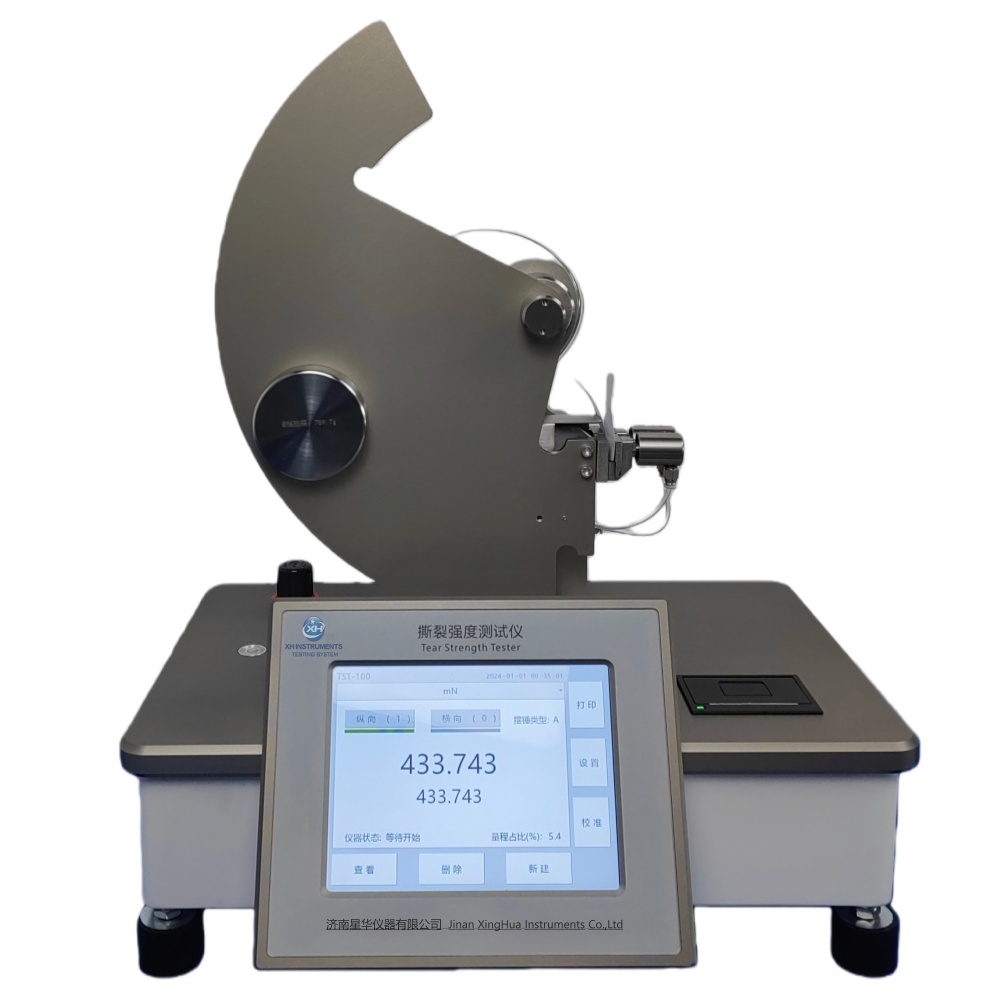

XHV-01 Paper and Board Tearing Strength Tester
XHV-06 Handle O-Meter
XHV-12B Tissue Paper Water Absorption Tester
XHV-43B Diaper Permeability Tester
XHV-21 Paper MIT Folding Tester
XHV-14A Paper and Corrugated Board Thickness Tester
XHV-09 Brightness and Color Tester
XHF-32 Paper Moisture Meter
XHV-40 Particle Charge Analyzer
XHV-20 Paper Sheet Dryer

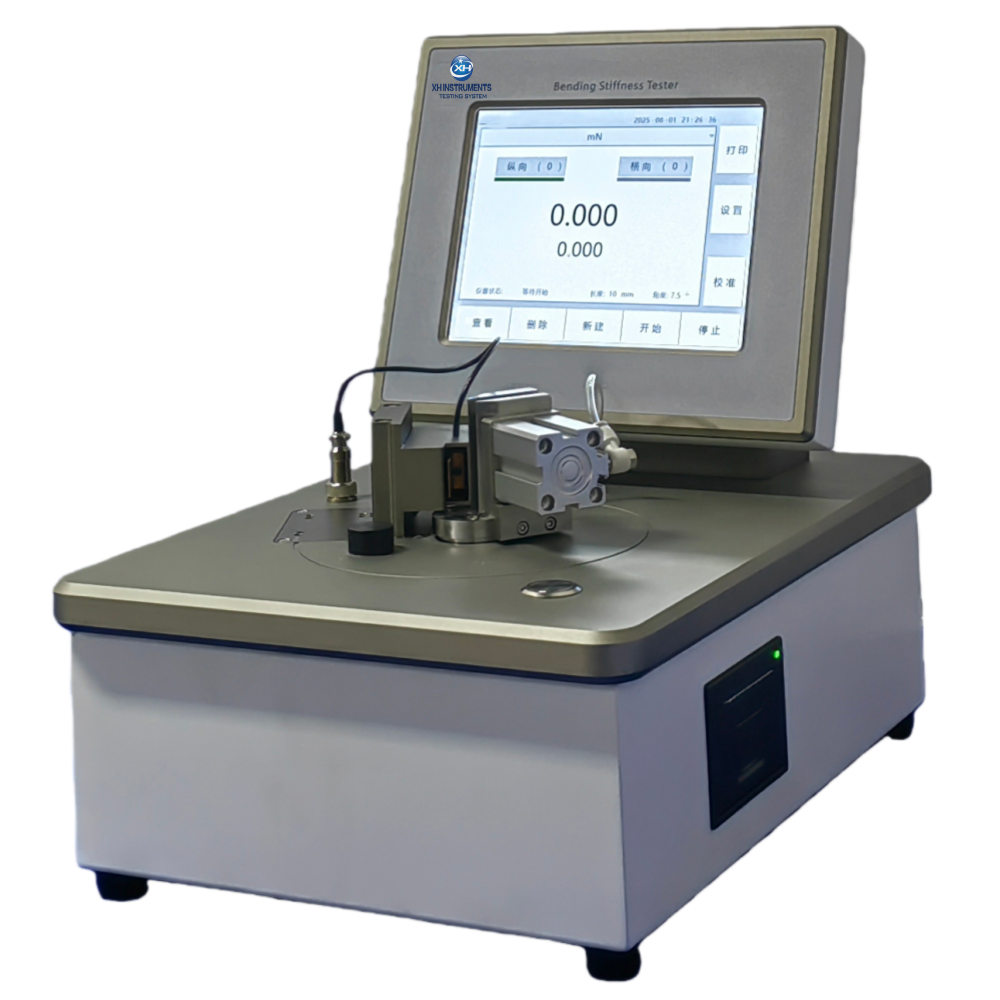

XHV-25 Paper and Cardboard Stiffness Tester
XHV-26N Gurley Air Permeability Tester
XHV-03-5 Concora Medium Fluter
XHV-03 Crush Tester
XHV-25B Paper Crease and Stiffness Tester
XHV-41 Diaper Foreign Material Tester
XHV-23 Scott Internal Bond Tester
XHV-14B Automatic Paper Thickness Tester
XHV-30 Paper Dust Tester

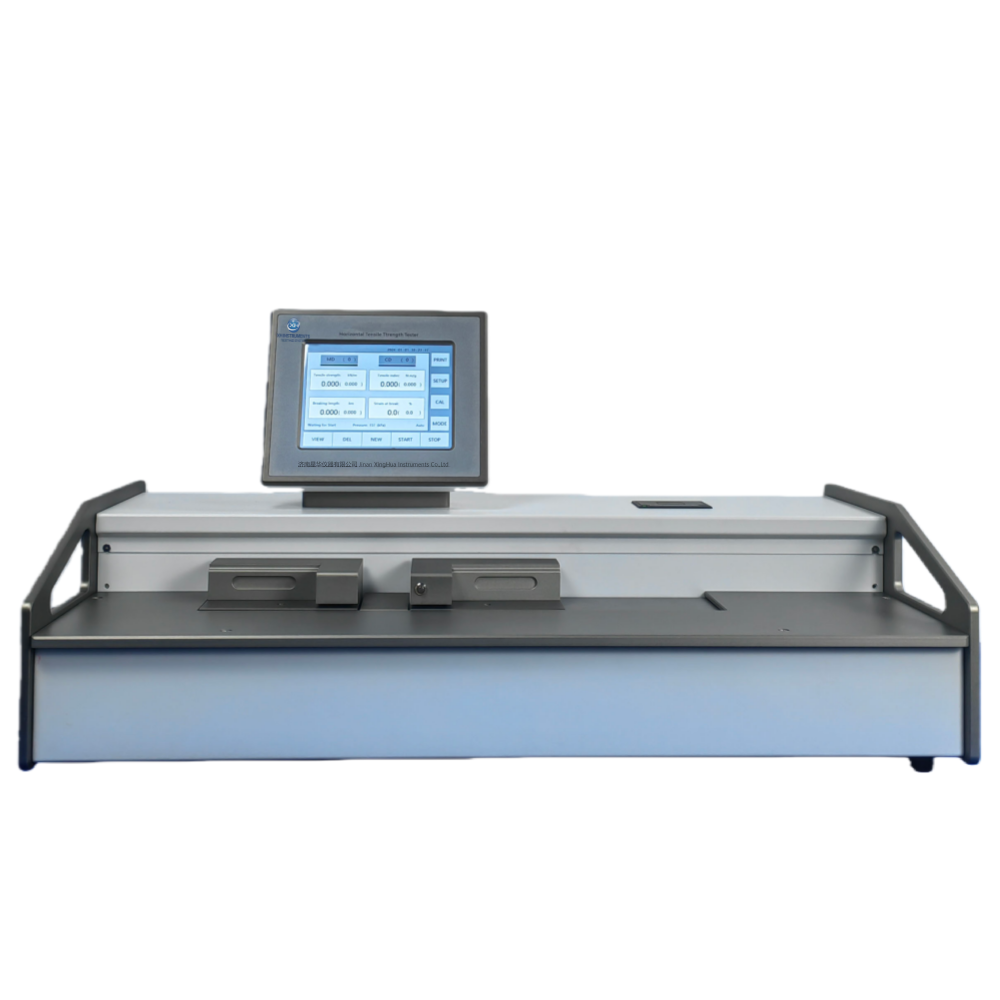

XHL-01P Paper Tensile Strength Tester
