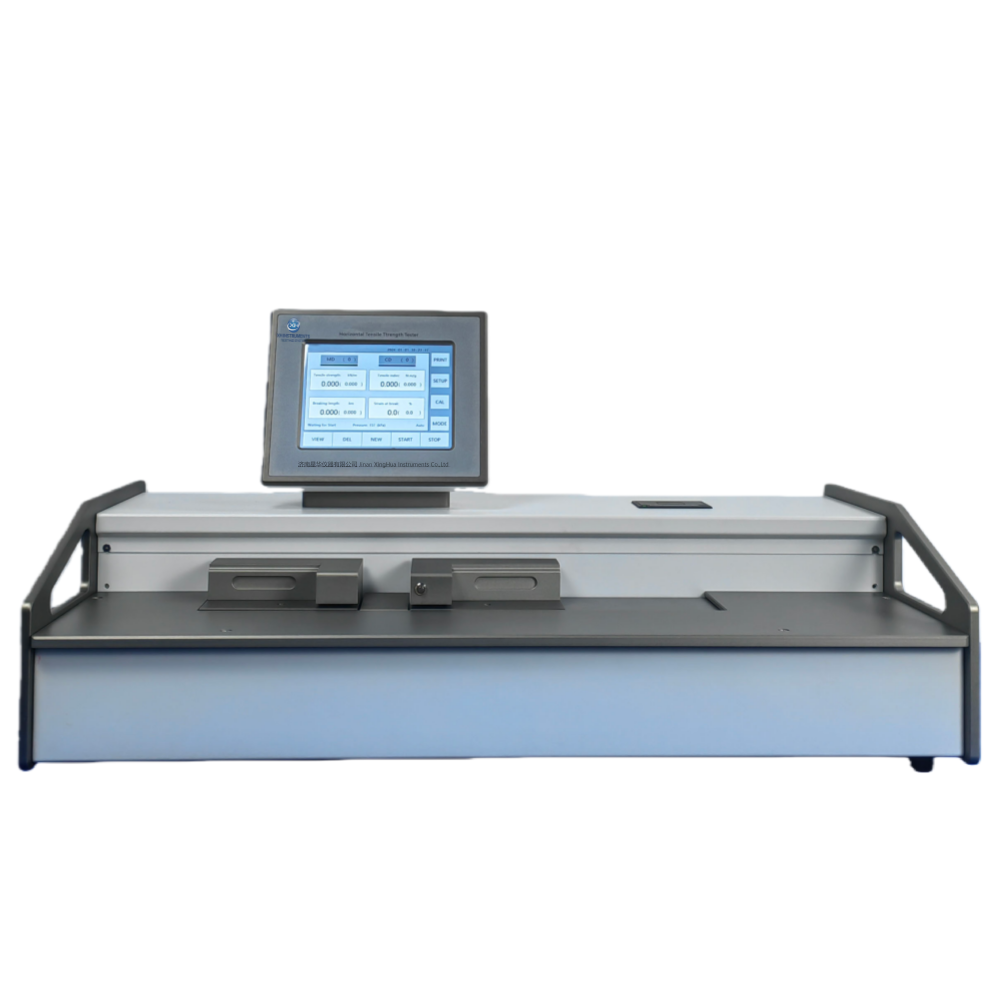

XHL-01HPT Fully Automatic Horizontal Paper Tensile Strength Tester

Product Category：Paper Tester

 Click to find us  Contact us

Share:   

Product Description

The XHL-01 HPT Tensile Tester is specially designed for paper tensile strength testing instrument

Test Standards

ISO 1924/2, ISO 12625-4, ISO 12625-5

Product Features

✅ High Efficiency and Precision: 0.5-grade accuracy, ±0.5% with a resolution of 0.01N, ensuring data reliability

✅ Easy Operation: 8.4-inch touchscreen interface with one-touch testing and real-time data visualization

✅ Flexible Adaptation: Three adjustable fixture options ( 15/25/50mm), compatible with multiple standard specimen requirements

✅ High repeatability: Automatic compensation for un-stretched specimen errors, pneumatic pressure release delay control to minimize human interference

✅ Auto-start: Detects sample presence via photoelectric tube and automatically initiates the measurement sequence, eliminating manual operation

Technical Parameter


Key Function
Accuracy Grade：	0.5 Grade
Test Items：	tensile force, tensile strength, tensile index, elongation, stretch at break,fracture length, tensile energy absorption, tensile energy absorption index
Measurement Range	0.1-500N
Accuracy	±0.5% of Indication value
Resolution	0.01N
Extension Measurement Range	0-130mm（ Standard Gauge Length:180mm）
Mechanical Design
Clamp Width	5mm, 25mm, 50mm（ Can be switched）
Gauge Length	50-180mm ( ±0.2mm Positioning Error）
Control System
Test Mode	Fully Automatic/Manual Double Test Mode
Trigger Method	Photoelectric sensing automatic detection initiated
Reset Accuracy	±0.1mm
Data Output
Touch Screen	8.4 Inch Color Touch Screen
Printer	Thermal Printer
Common Configuration
Wet Strength Test	Wet tensile soaking pool: including automatic soaking and testing system （Optional Purchase）
Power Supply	220V ，50Hz。
Load Cell	USA Transcell
