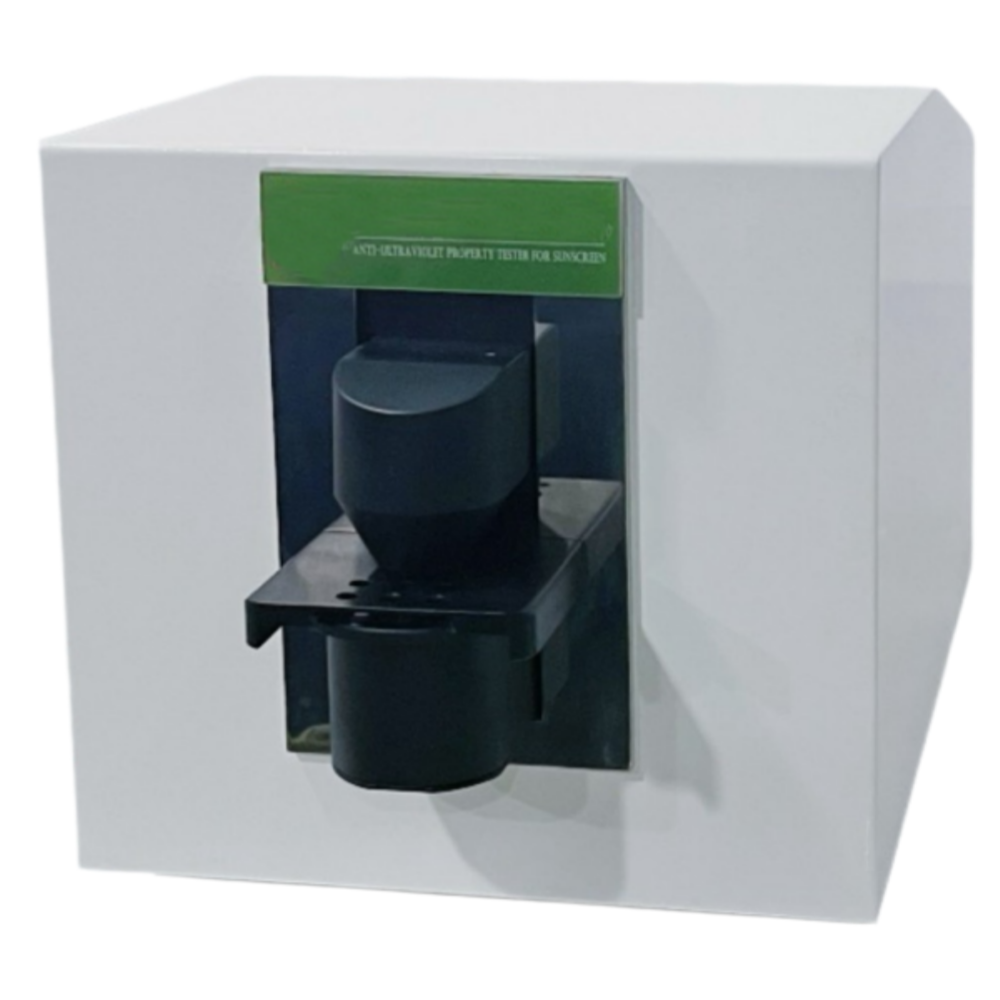

XHF-127C Ultraviolet Cosmetics SPF Test Instrument

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

The Ultraviolet Cosmetics SPF Test Instrument is a special instrument used to test the SPF of cosmetics, which can directly measure the transmittance and barrier rate of cosmetics to ultraviolet radiation, and calculate the SPF value and suntan index UVAPF value of cosmetics, as well as the PA rating system based on UVAPF value.

Test Standards

IS0 24443, FDA, COLIPA and Safety Technical Specifications of China.

Product Features

Fully computer-controlled with Chinese and English interfaces, featuring

automatic data processing, data storage, and report printing.

It measures SPF, UVA, UVB transmittance, calculates UVAPF、PA rating and

critical wavelength.

Equipped with a special sample stage for PMMA substrates.

Advanced calibration ensures accurate, reliable results comparable to imported

products.

Technical Parameter

Wavelength range	290-400nm
Resolution	0.1nm
Accuracy	±1nm
Transmissivity T	0-100％
Resolution	0.01％
Accuracy	±1％
UPF	0-100 Resolution: 0.01% Accuracy: ±2％
UPF	>100 Resolution: 0.01% Accuracy: ±5％
Specimen thickness	0-12mm
Dimension	L305×W400×H320mm
Weight	21Kgs
Standard Configuration	Main Frame, SPF software, PMMA Plate 20 Pcs, Disposable syringes for experiments, 10 Pcs
Optional Configuration	PMMA plate, Deuterium lamp (Life 800-1000 hours)
