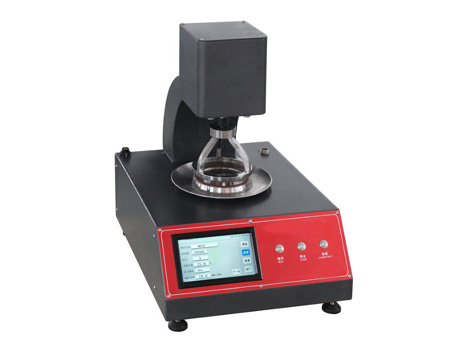

XHF-07B Fabric Hydrostatic Head Pressure Tester
Product Category:Fabric and Textile Tester
Fabric Hydrostatic Head Pressure Tester is used to determine not only the fabric hydrostatic pressure resistance, but also the hydrostatic pressure proof performance of the coating materials.
ISO-811, AATCC 127, BS EN20811, ISO 1420, JIS L1092
Microcomputer control, Big Color Touch Screen, five built-in test methods .
Adopt high pressure sensor, over pressure protection.
On line pressure track and calibration. Can connect pressure gauge on the machine, real time track the value on the pressure and machine display.
The built-in tank design, creative balance system of water pressure rate, rising speed
stability and accuracy.
Clamp made of stainless steel, equip LED light to view specimen clearly.
Testing Mode:
Pressure rise method, Constant pressure timing method, constant pressure constant time method, relaxation method, leaking method
Testing Pressure | 0-200Kpa, 0-500Kpa |
Accuracy | ≤±0.5% FS |
Resolution | 0.01Kpa |
Clamp Method | Pneumatic |
Elevation Speed | 0.5Kpa/min-100Kpa/min |
Sample Testing Area | 100cm2 |
Testing Times | ≤99 times |
Keeping Time | 0-99999.9S+/-0.1S |
Speed Unit | kPa/min, mmH2O/min, mmHg/min, Bar/min |
Unit | kPa, mmH2O, mmHg, Bar |
Dimension | 380x480x460mm |
Power | 220V, 50/60Hz, Single Phrase |
