XHF-01P Portable Air Permeability Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-01P Air Permeability Tester is used to test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, industrial filter materials etc.

Test Standards

ASTM D737, ASTM D3574, BS5636, DIN53,887, EN ISO 7231, EN ISO9237, JIS L1096-A, TAPPI T251 and so on.

Product Features

Portable testing, can be moved anywhere, realizing online detection and fixed-point testing, one machine for multiple purposes.

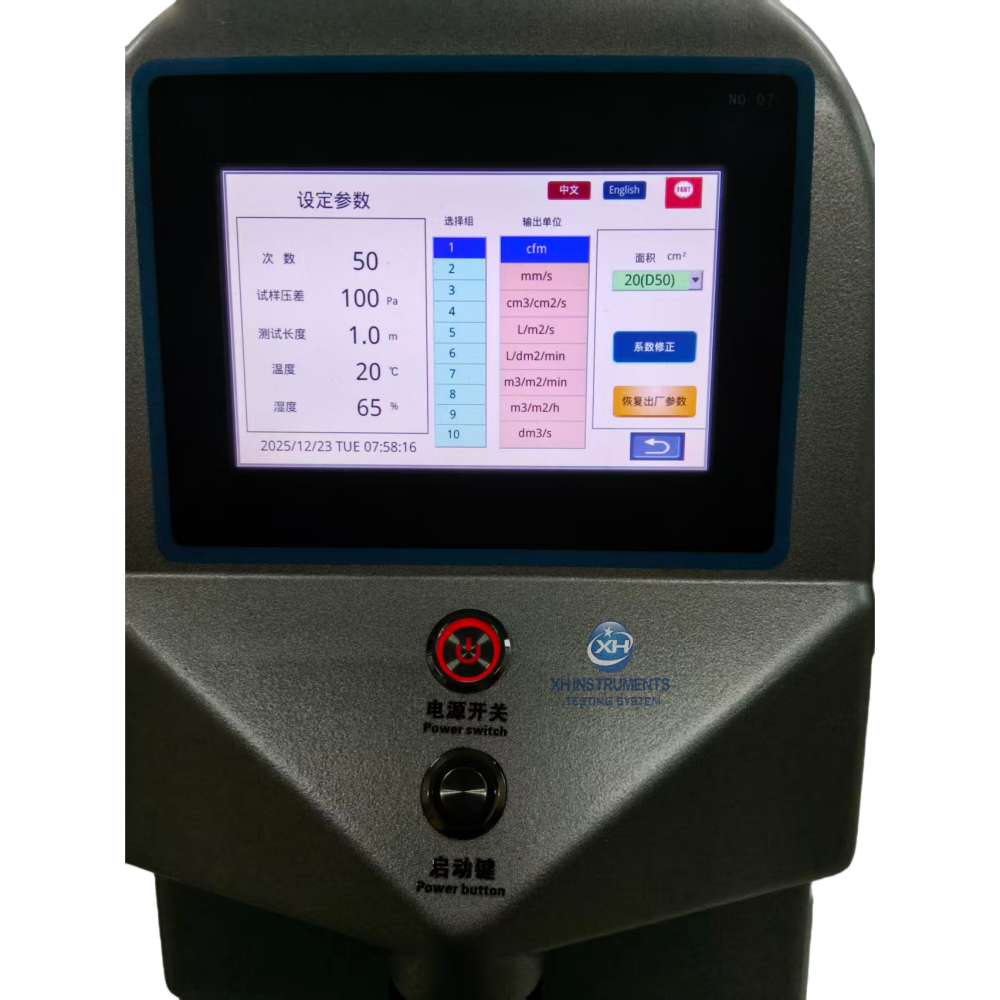

4.7-inch touch interface, displaying the entire process of dynamic testing.

Professional designed suction device

Different national standard parameters and units can be set arbitrarily, displayed on both

English color touch screen screens, and test results do not need to be converted.

It has printing function and is equipped with a micro printer.

Technical Parameter

Pressure Difference Range	50-200Pa
Flow Velocity Range	2-3200m/s (L/㎡·s)
Measuring Accuracy	≤±3%
Supported Units	cfm、mm/s、cm³/cm²/s、L/m²/s、L/dm²/min、m³/m²/min、m³/m²/h、dm³/s
Standard Test Area	20cm²
Optional Test Areas	5cm²、38.3cm²、50cm²、100cm²
Power Supply	DC24V±3v (Battery-powered)
Dimensions	22cm×20cm×30cm
Weight	4Kgs
