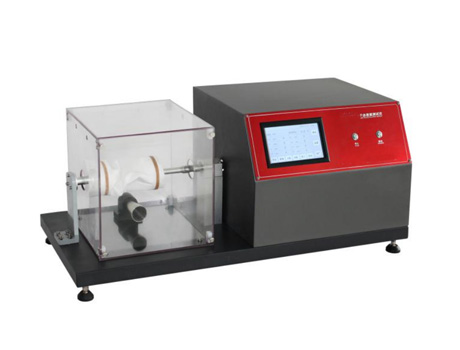

XHF-118 Gelbo Flex Tester With Particle Counter
Product Category:Protective Clothing Tester
The particle counter for use with this Gelbo Flex Tester System is to ascertain the amount of loose fibres (lint) to shed from non-woven materials in a 30 seconds time period of flexing.
With non-woven textile joining the traditional lines of products such as plastics, paper, textiles etc. for uses in healthcare and hygiene, cleaning, filtration, food packaging and more, cleanliness is an important consideration; therefore, such materials must have a low propensity to lint.
Using IST160.1 and ISO9073-10:2003, We has designed the Gelbo Flex Tester System with particle counter for measuring the linting of non-wovens in the dry state. This test can also be applied to other textile materials.
Application
Experiments of disposable or reuseable surgical bedsheet, surgical clothes and clean clothes for patients clinical staff and equipments.
Environment of testing
ISO 5 (class 100).
Principal
While the sample is being subjected to repetitive twisting and compression cycles on the Gelbo Flex Tester, air is withdrawn from the testing chamber and the particles in the air stream are counted and classified on the particle counter.
Main parts
Gelbo Flex Tester
Flexing Chamber and Air Collector
Airborne Particle counter
Laminar flow bench (optional, it is used to supply ISO 5 clean air)
ISO 9073-10, INDA IST 160.1, DIN EN 13795-2, EN ISO 22612-2005
Specimen dimension | 285×220mm |
Diameter of two circular plates | Φ82.8mm |
Moving dreqency | 60 Cycles/min |
Rotating angle | 180 degree clockwise and anti-clockwise |
Starting Position of two circulate plates | 188±2mm |
Stroke of the linear motion | 120±2mm |
Control | Touch Screen and PC |
Power supply | 110V/220V, 50Hz/60Hz |
Dimension | 300mmx1150mmx350mm |
Weight | 30Kgs |
Technical Parameter of Particle Counter:
Flow rate | 28.3L/min |
Eight particle-size channels: | 0.3, 0.5,0.7,1.0, 3.0, 5.0, 10.0, 25.0um (μm) |
Sample Period | 1 Sec-3599 Sec |
Self-clean Time | ≤10min |
Light source | Laser diode;>30,000 hours lifetim |
Overall size | 215×285×240(mm) |
Screen size | 160×100(mm) |
Vacuum Pump | Built-in vacuum Pump |
