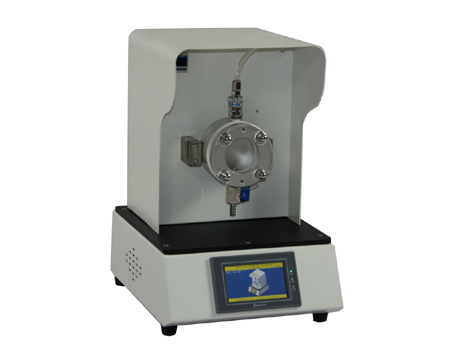

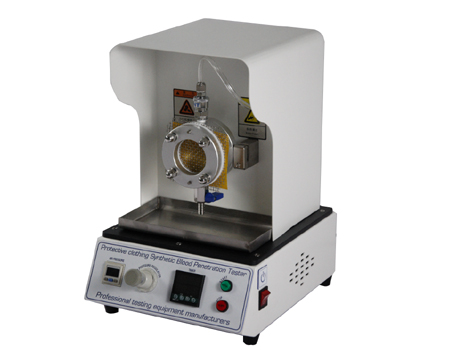

XHF-109 Synthetic Blood Penetration Tester
Product Category:Protective Clothing Tester
Synthetic Blood Penetration Tester
The resistance of a protective clothing material to penetration by a liquid under pressure is determined by subjecting the material to the liquid for a specified time and pressure sequence and observing if visible penetration of the liquid occurs.
The the penetration test apparatus, the clothing material acts as a partition separating the hazardous liquid chemical from the viewing side of the test cell.
Any evidence of liquid penetration constitutes failure. Results are reported as pass/ fail.
ISO 16602, ISO 16603, ISO 13994, BS EN 14126, ASTM F903, ASTM F1670, ASTM F1671
Inner diameter of flange slot | 57mm |
Flange cover diameter | 57mm |
Pressure range | 0-100Kpa, Resolution 0.01Kpa, LED display, adjustable |
Test Pressure | Max 20Kpa |
Timing | 0-99min59s, adjustable |
Test station | 1 station |
Specimen Size | 75mmx75mm |
Dimension | 290mmx430mmx440mm |
Weight | 20Kgs |
