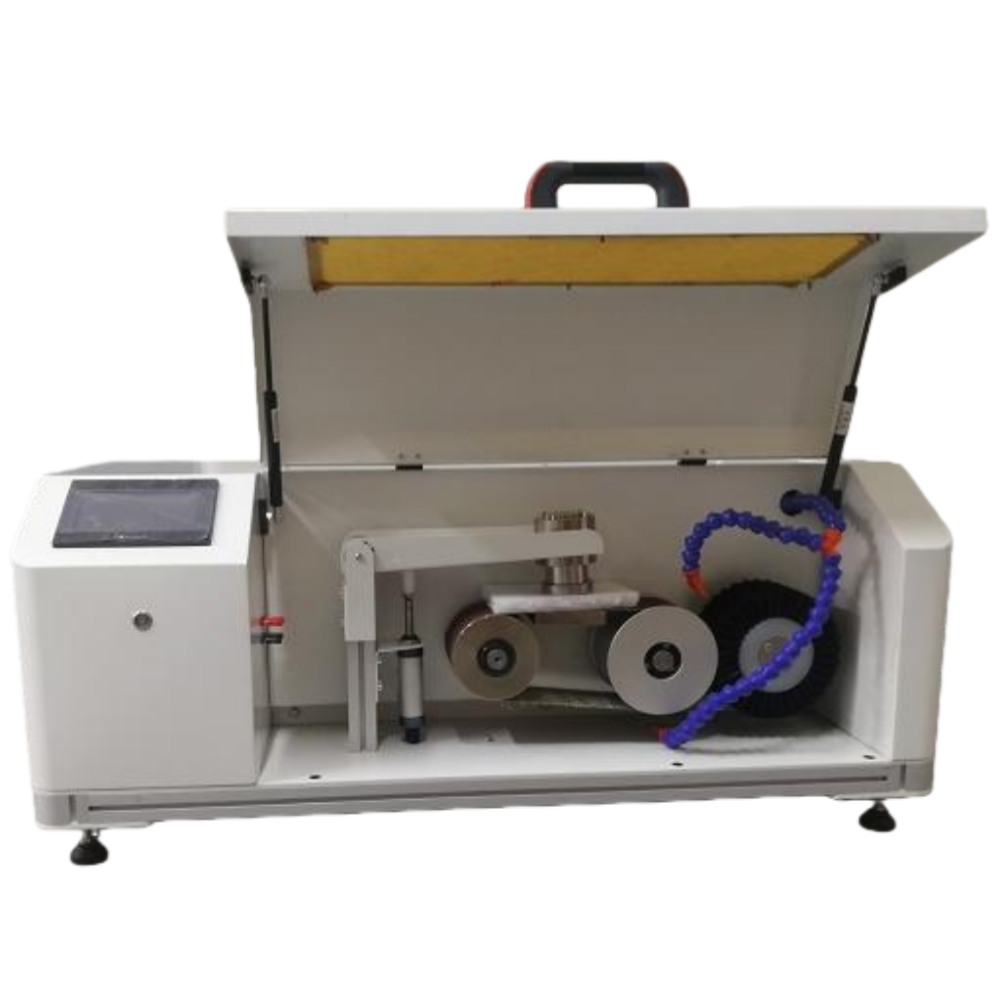

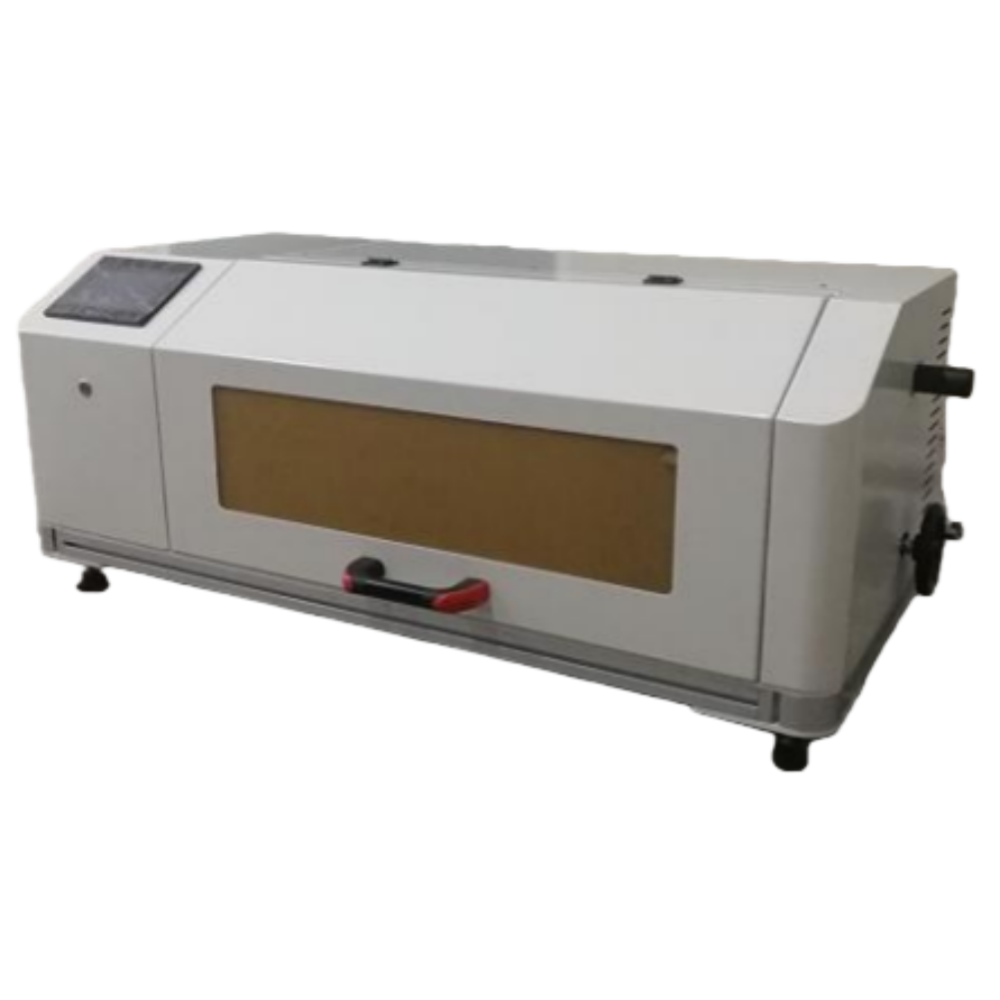

XHF-132 Impact Abrasion Tester

Product Category：Protective Clothing Tester

 Click to find us  Contact us

Product Description

A test specimen is dropped from a set height onto an abrasive belt moving at fixed speed over a rigid horizontal surface. The time for specimen to fully abrade is measured by detecting the difference in time between the breaking of two electrical wires, one passing over the out and one over the inner surface of the specimen.

Test Standards

EN 13595-1, EN 13595-2, EN 13634

Technical Parameter

Belt Grain size	OP60
Belt Speed	8m/s
Driven Roller	>Φ150mm, ≥10Kg
Non Driven Roller	≥10Kgs
Cylindrical brush	Φ200mm,approximately 200 000 bristles
Static force on sample	49N
Abrasion Area	1963mm2
Drop Height	50±5mm
Sample Holder	Φ75mm
Control	PLC+ Touch Screen
Abrasion Distance Between Sample and Belt	Settable, automatic lift abrasion head once reach testing time, display abrasion distance
Dimension	1200mmx770mmx750mm
Weight	100Kgs
Power	220V, 50Hz, 1KW
Standard Configuration	Main Frame, Belt 5 Pcs, Vacuum Cleaner
Optional	Cotton canvas, Belt, Customer prepare air source
