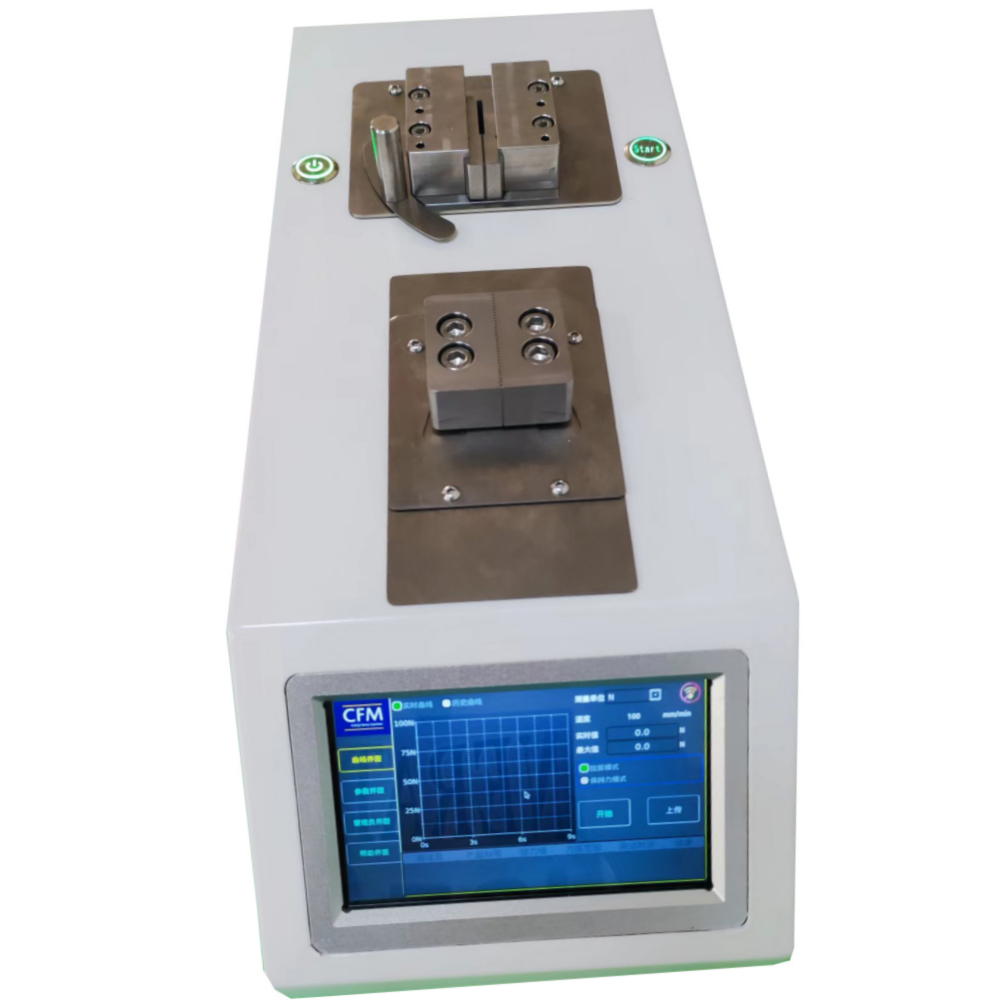

XHL-CFM Wire Crimp Pull Tester works as a special instrument designed to test the pull-off force upon various types of terminal blocks after crimping, and boasts an easy operation and a fast response speed. Its built-in micro-operating system can effectively secure both stability and accuracy in those test results, and its data transmission is accessible via various communication interfaces so as to adapt to those requirements on different industrial sites.

Ø Language Options: Chinese / English;

Ø Measuring Unit Options: Unit conversion among Newton, Kg and lb.

Ø Data Display: The tensile force value is displayed in real time during the test process, and the pull-off test results present both the peak tensile force and the test curve.

Ø Retention Function: The force-holding value and the retention duration can be set for the force-holding test. The test results will be displayed after the force-holding test is completed.

Ø Speed Setting: The test speed can be set in a range from 0 to 999 mm/min, and the power-on state is available as well.

Ø Fixture Function: During the test process, the instrument can clamp the specimen automatically; after the test, the instrument will return to its original position automatically without the need for manual operation.

Ø Communication Interface: The instrument is configured with USB interface.

Ø MES Function: When the test completes, the test data will be uploaded to the MES system automatically.

System Setting: The instrument is configured with parameter setting interface that facilitates in setting various system parameters.
