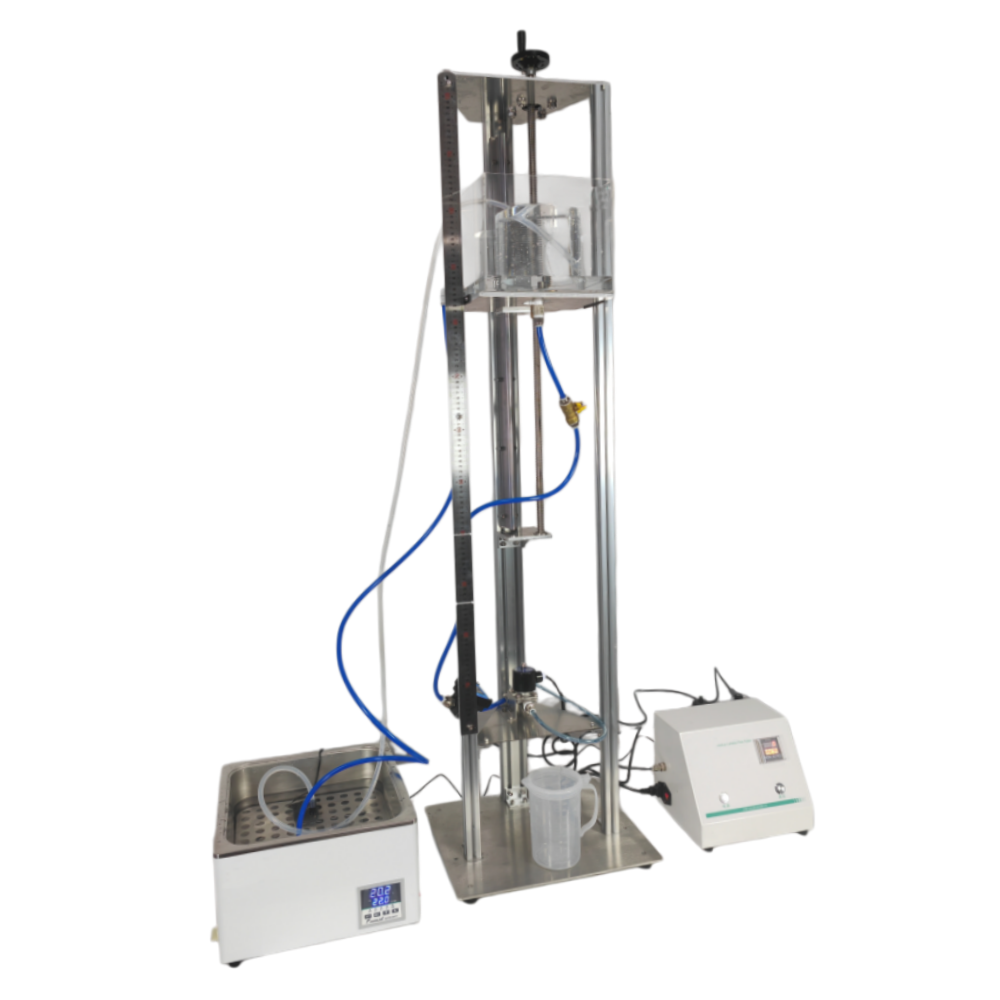

XHD-12 Catheter Flow Rate Tester

Product Category：Pharmaceutical Testing Equipments

 Click to find us  Contact us

Product Description

Water is allowed to flow through the catheter and the amount of flow is measured either volumetrically or gravimetrically.

Test Standards

ISO 10555-1

Product Features

Intelligent embedded operating system, smart temperature control, stable accuracy.

With circulation pump, automatic water filling and drainage, easy to use.

With stainless steel constant temperature water bath with metal casing for safety protection, featuring a neat and aesthetically pleasing appearance.

The liquid level height can be adjusted freely to ensure the accuracy of pressure output.

Configure dedicated fittings to adapt to various medical catheters.

Technical Parameter

Flow Rate Range	0-1000ml/min
Temperature Control Accuracy	±1℃
Liquid Height Adjustment Range	200-1200mm
Time Setting Range	0-60 minutes
Dimension	900mm(L)×500mm(D)×1580mm(H)
Weight	46Kgs
Power Supply	220V, 50Hz
Standard Configuration	Main Frame, Water Bath, Pipeline..etc
