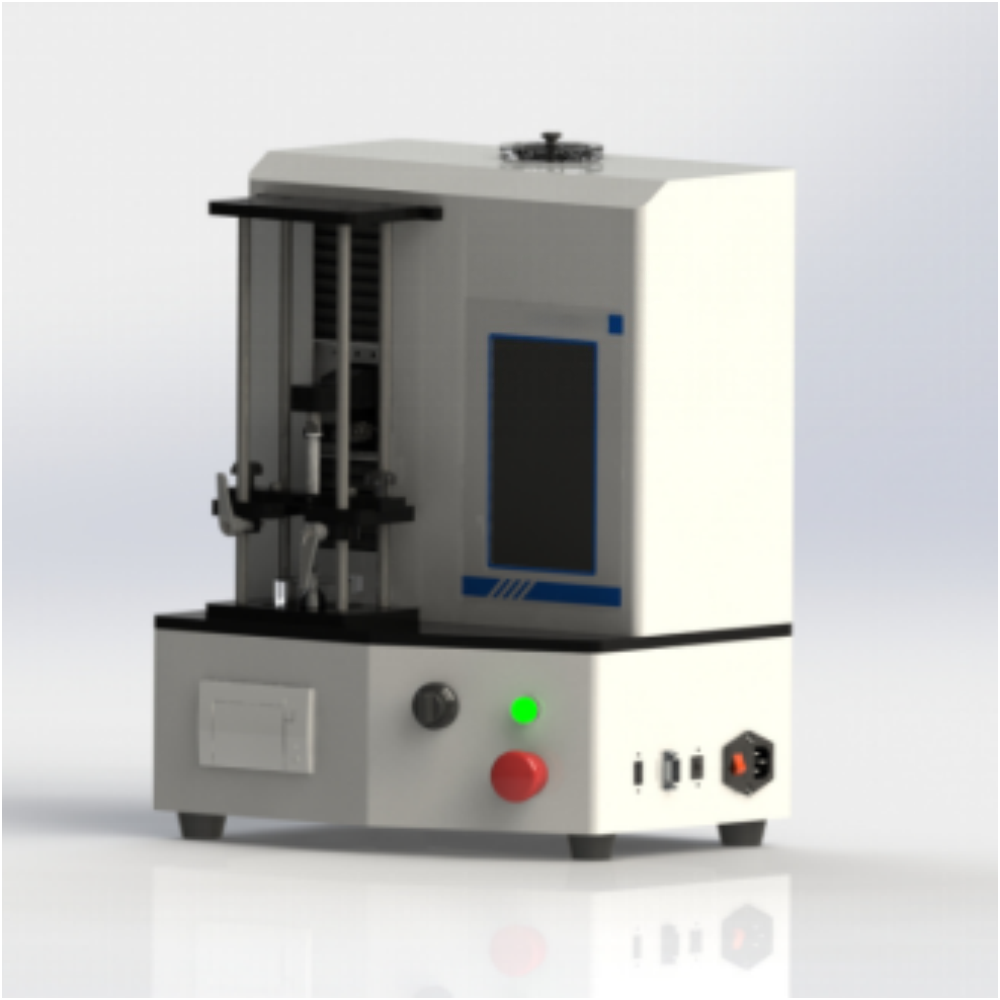

XHD-11 Syringe Sealing Positive Pressure Tester
Product Category:Pharmaceutical Testing Equipments
XHD-11 Syringe Sealing Positive Pressure Tester is suitable for syringe body tightness testing. It is one of the important means to identify medical syringes.
GB/T15810,YYT 0909,YY 0497,YYT0573.5,YYT0573.4,YYT0573.3,YYT0573.2,ISO 7886.1,YBB00112004
• Industrial-grade 8-inch touchscreen, allowing one-touch access to any operating interface;
• Proprietary, independently developed single-chip microcontroller-based control system with excellent sealing, ensuring simple and fast operation, stability, reliability, and high accuracy;
• The control software complies with pharmaceutical GMP authority account management requirements, facilitating standardized equipment use by laboratory personnel;
• Real-time display of test curves showing the trend of experimental data throughout the entire testing process;
• The instrument features functions such as test result judgment, saving, querying, and data traceability;
• Uses internationally renowned brand components for stable and reliable performance;
• The instrument has power-off storage, overload alarm, and shutdown protection functions to ensure testing safety;
• Equipped with a universal USB data interface for convenient data output and transfer;
• Configured with a micro printer, allowing direct printing of test results;
• Multi-level user authority management and password login for convenient user management.
Core Rod Lateral Force | 0~10N |
Lateral Force Accuracy | ±0.5%F.S |
Core Rod Axial Pressure | 0~500Kpa |
Axial Pressure Accuracy | ±0.5%F.S |
Core Rod Axial Force Time | 0-999999S |
Applicable Sample Volume | 1ml~100ml |
Control Method Microcomputer | control, fully automatic testing |
Display Method | 8-inch LCD touchscreen |
Data Output Method | Thermal or dot matrix printer (two options available) |
Air Source Pressure | 0.5 MPa~0.7 MPa (air source provided by the user, optional) |
Air Source Interface | Φ6 polyurethane tube |
Dimensions | 300(L)×400(W)×500(H)mm |
Power Supply | 220VAC 50Hz / 110VAC 60Hz |
Net Weight | Approx. 20KG |
