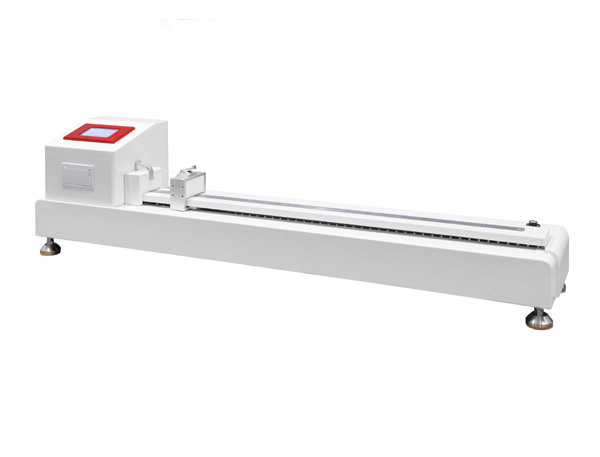

XHX-17 Yarn Crimp Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

XHX-17 Yarn Crimp Tester is designed to measure yarn crimp or take-up in woven fabrics and stitch or course lengths in knitted fabrics. Detach the yarn from a piece of given-length fabric, unbending it under given force and measuring its length. To calculate the crimp in yarn affected by knitting or weaving, to determine actual yarn usage. LCD display, main frame is made of stainless steel and aluminum alloy.

Test Standards

ISO7211, BS 2863, BS 2865 , BS 2866, ASTM D3883

Product Features

Color touch screen operation.

Adopt microcomputer control and stepper motor transmission to ensure stesteady running.

Adopt high precision sensor to ensure accurate test results.

Equipped with thermal printer to printer statistic results.

Technical Parameter

Length Range	1000mm
Length Resolution	1mm
Force Range	0.1-500cN
Force Resolution	0.1CN
Testing Speed	1-1000mm/min
Dimension	1460mm×300mm×350mm
Weight	25Kgs
Power Supply	110V/220V, 50/60Hz
