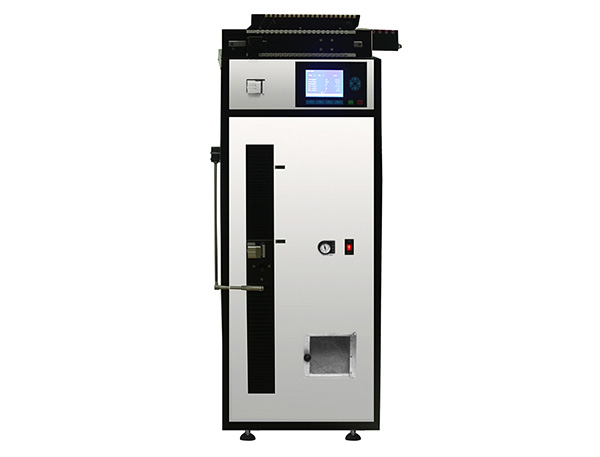

XHL-02F Fully Automatic Yarn Strength Tester
Product Category:Yarn and Fiber Tester
XHL-02F Fully automatic yarn tensile strength tester is used to determine the breaking load and elongation of single yarns, core-spun yarn, polyester filament etc.
ISO 2062, ATSM D2256, BS 1932, DIN 53842.1, DIN 53835.2...etc.
1. Working pattern: CRE principle, controlled by both computer and LCD display, professional software supports.
2. Large LCD can record, browse detail results and print results by printer
3. Fully programmable to give breaking load, elongation, CV% of load, elongation, stress, strain curve and tenacity values..etc.
4. Time fixing tensile: 10s or 20s
5. With memory function when power interrupt, and up to 999 tests on each sample:
6. The machine adopts contactless relay, stable performance, reliable
7. Gauge length and tension speed pre-settable
8. Able to set pretension force
9. Dual control, can use computer control, also can use large panel controller control without PC, for PC, output report as BMP, WORD, EXCEL ..etc directly.
10. Use American Celtron load cell and Servo motor, low friction ball bearing screw
11. Automatic sample loading from the cops as program.
12. Automatic zero-setting after each test.
13. Pneumatic Gripping, the clamp force can be adjusted, no destroy the yarn.
14. Creel for robbions, can test 20 pcs cops at the same time.
15. Force and elongation can be measured at any point of the curve
16. Force reading can be selected either in Newton, gram, CN or LB
17. Elongation reading can be selected either in or mm
18. Have waste box.
19. Yarn winding will not occur because of professional lower gripper design.
Max Measurement Force | 6000CN |
Linear Deviation | 0.05% |
Load Cell Accuracy Class | 0.05% |
Gauge Length | 250mm±1mm,500mm±1mm |
Pretension | 1cN-100cN |
Elongation | when at 250mm gauge length, max elongation is 220% when at 500mm gauge length, max elongation is 60% |
Accuracy | Within ±1% of applied force |
Tensile Speed | 50mm/min-5000mm/min |
Tex | 1-999.9 random setting |
Working Pressure | 0.4Mpa-0.8Mpa |
Power | AC110/220V 50/60Hz |
Dimension | 1295mm×550mm×450mm |
Weight | 140kg |
XHX-03 Trash Analyzer
XHX-05 Electronic Yarn Twist Tester
XHX-07 Yarn Package Hardness Tester
XHX-24 Yarn Friction Tester
XHX-12T Automatic Yarn And Sliver Evenness Tester
XHL-02C Single Yarn Strength Tester
XHX-10 Yarn Faults Classification Tester
XHX-23 Yarn Abrasion Tester
XHX-11 Portable Yarn Strength Tester
XHL-02D Single Yarn Strength Tester
XHX-32 Yarn Sample Card Winder
XHL-02FE Fiber Strength Tester

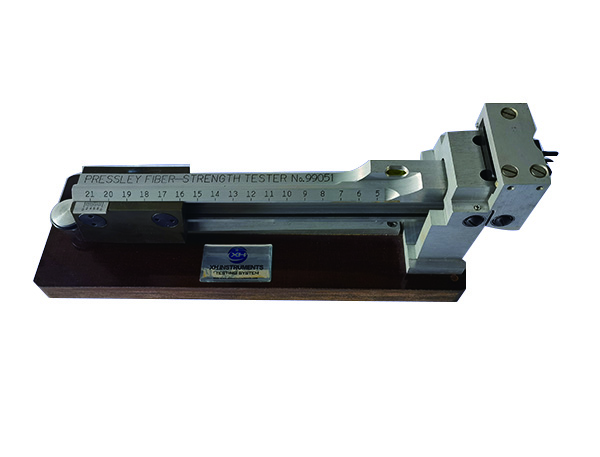

XHX-15B Pressley Fiber Bundle Strength Tester

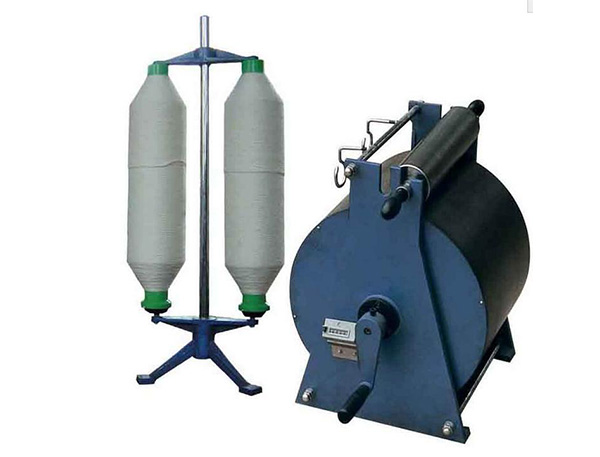

XHX-04 Electronic Wrap Reel Tester
XHX-26 Crimp Contraction Tester
XHX-16 Yarn Hairiness Tester
XHX-06 Yarn Examining Machine
XHX-09 Yarn Count Tester
XHX-15A Stelometer Fiber Bundle Strength Tester
XHX-08 Yarn Tension Meter
XHX-12 Yarn Evenness and Hairiness Tester

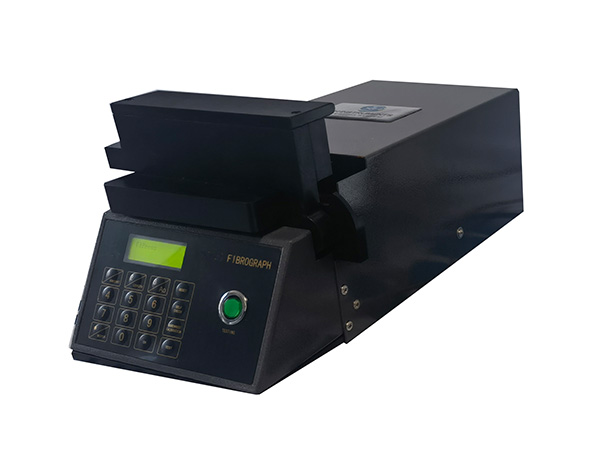

XHX-13 Fibrograph Fiber Length Tester
XHX-22 Fiber Microscopy
XHX-02 Sliver and Roving Length Meter
XHX-17A Yarn Crimp Tester

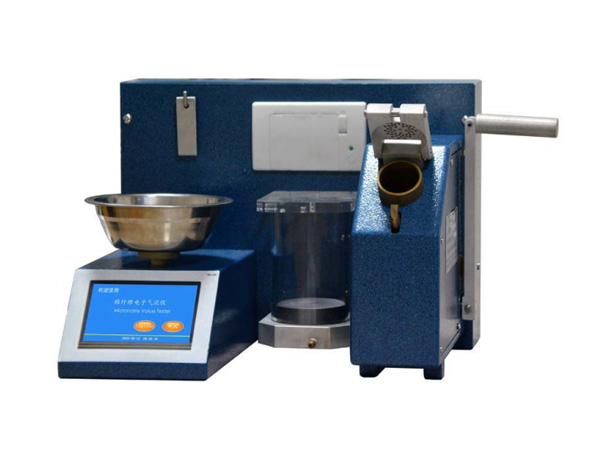

XHX-14 Micronaire Tester
