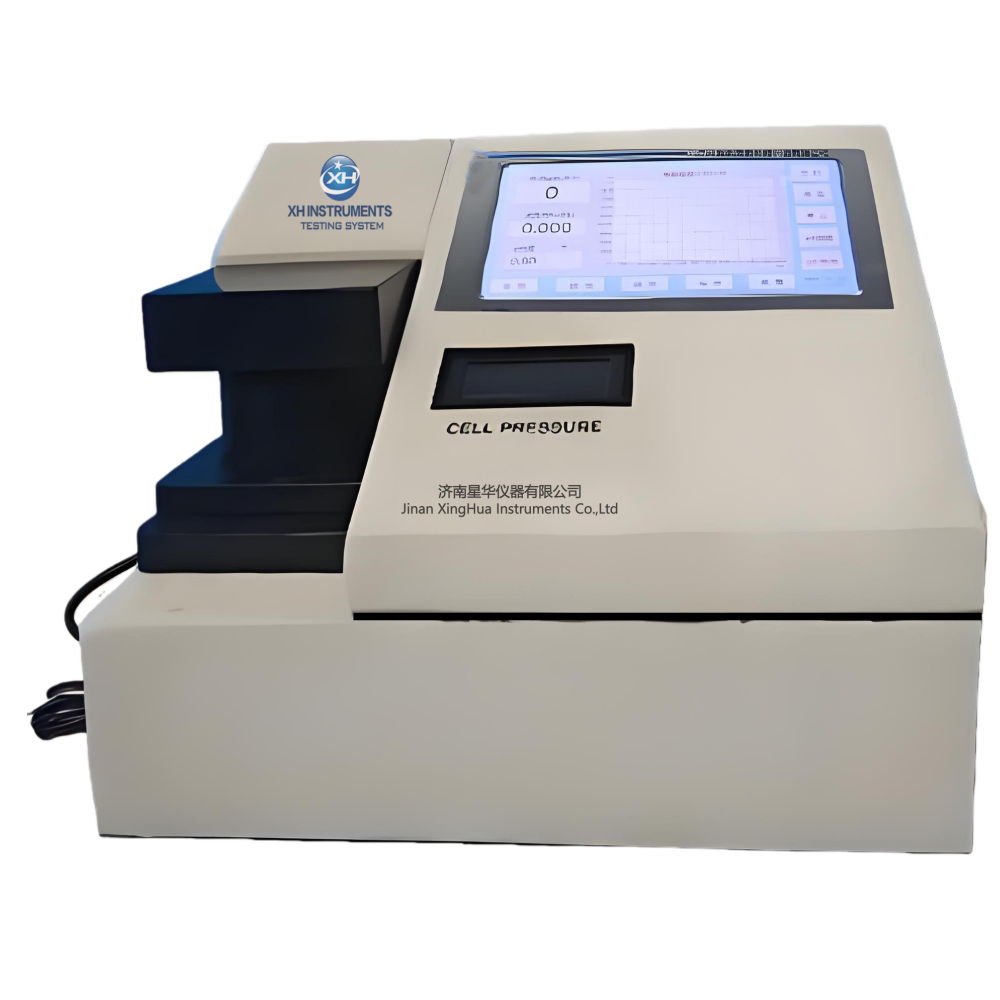

XH-WRVT Water Retention Value Tester

Product Category：Pulp Tester

 Click to find us  Contact us

Share:   

Product Description

XH-WRVT Water Retention Value Tester enables pressure adjustment in the measurement chamber through touchscreen controls for both pressure adjustment and display.

The XH-WRVT adopt a servo pressure control system, comprising two valves,a pressure sensor, and an electronic control circuit. The system continuously

monitors and adjusts chamber pressure to maintain precise control within 1% of themeasurement range.

Test Standards

Complies with TAPPI T701

Technical Parameter

Parameter	Details
Test chamber area	8.0 cm2
Sample volume	10 ml
Test chamber pressure	0-30 psi (0-2 bar)
Pressure display	Digital display
Input pressure	Minimum 80 psi (5.5 bar); Maximum 100 psi (7 bar)
Power supply	110V~220V
Timer	Touch screen display, 0.1-9990 (s)
Weight	Net weight: 18 kg
Size	254x254x177.8 (HxWxD) mm
