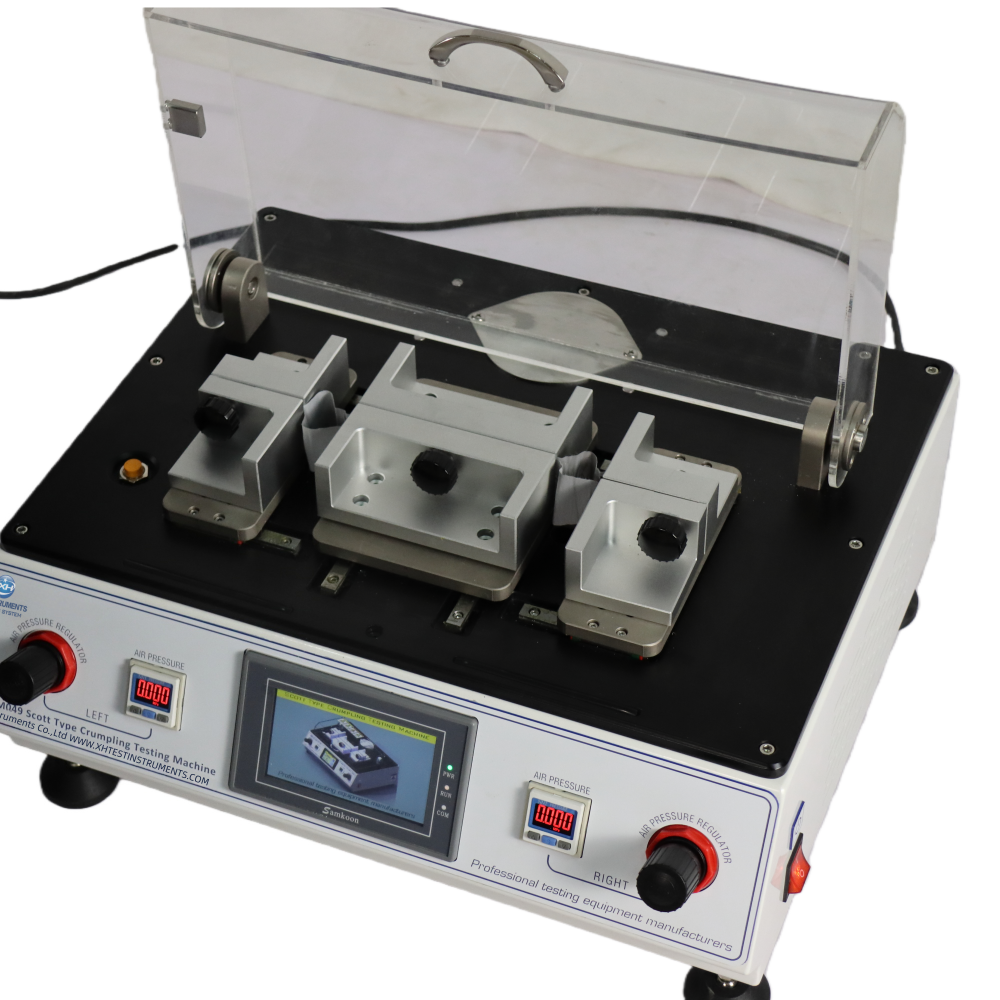

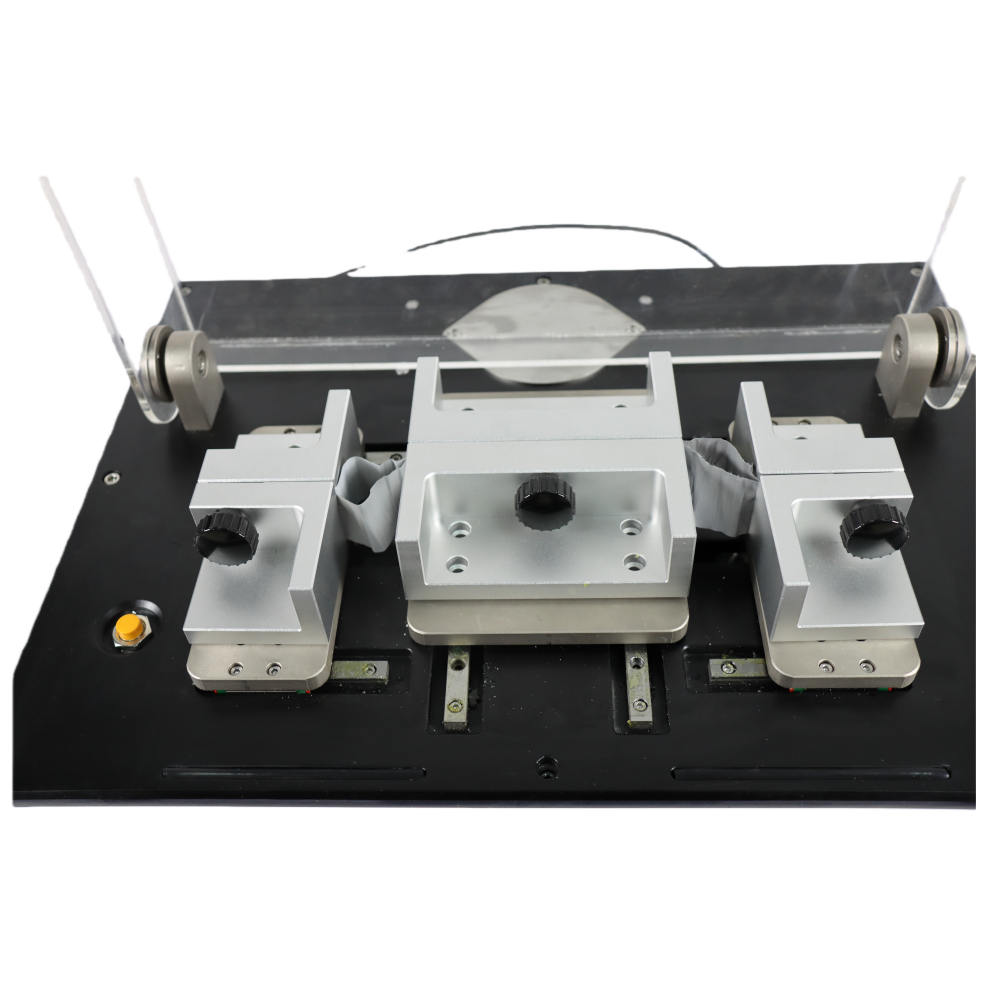

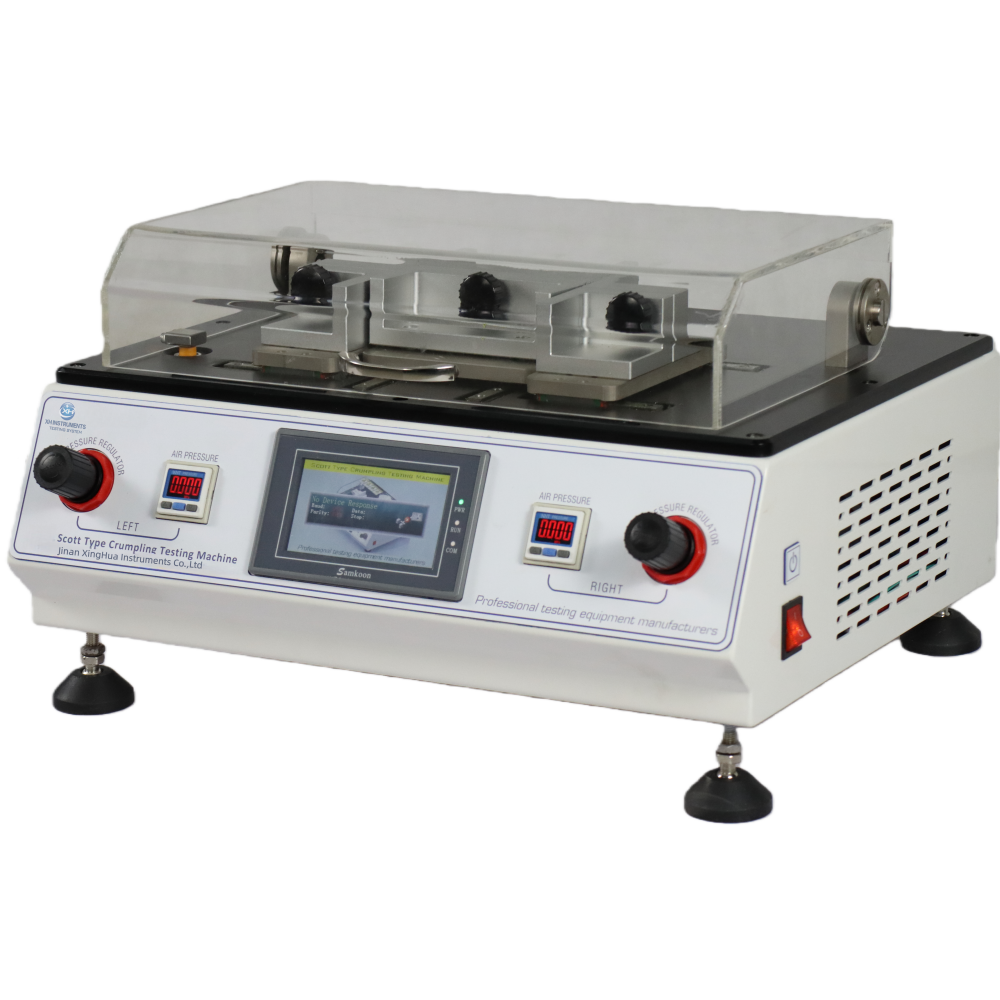

XHF-60 Scott Bend Abrasion Tester is applied to test the crumpling resistance of PVC artificial leather. One or Two test pieces are clamped together with their fabric surfaces face to face and then rub to each other. After specific times of rubbing, observe the surface of specimen whether there is rupture, wrinkle or fade.
ISO 5981, JIS K6404-6, JIS L1096
Suitable for leather, rubber, cloth and other materials;
Count and stop automatically;
Equipped with a safety shield on the test area: when the shield is lifted, the instrument cannot run;
Touch screen operation
Sample | 30mm x 120 mm |
Testing speed | 120±2r/min |
Fixture interval | 30mm |
Testing stroke | 50mm |
Fixture | 1kgf(9.8N) |
Working position | 1 or 2 |
Counter | 0~9999 times, settable |
Air pressure | 6kgf/cm^2 |
Power Supply | 220V, 50Hz, 1ph |
Dimensions ( L x W x H ) | 58x45x45cm |
Weight | 60Kg |
Optional Configuration | Air Compressor |
