+86-531-67880131Your Location：Home > PRODUCTS>Fabric and Yarn Testing Equipments>Abrasion Tester

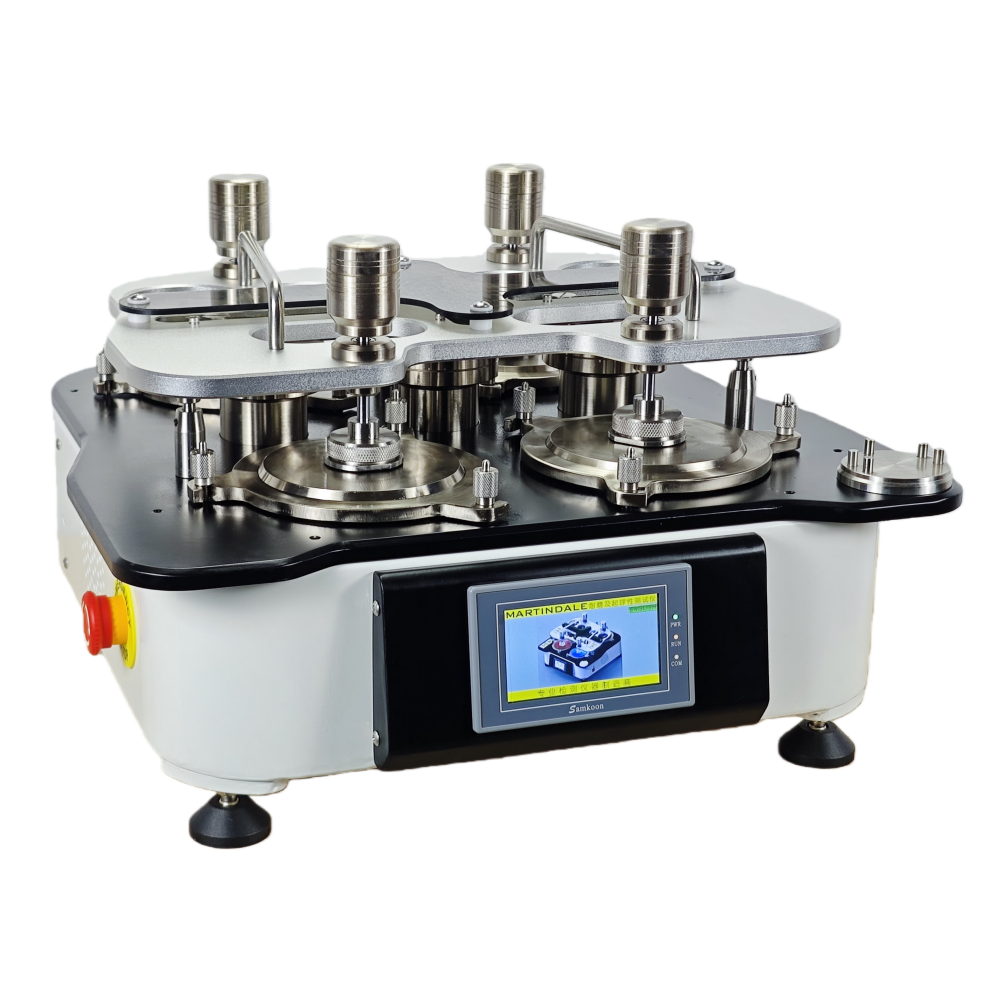

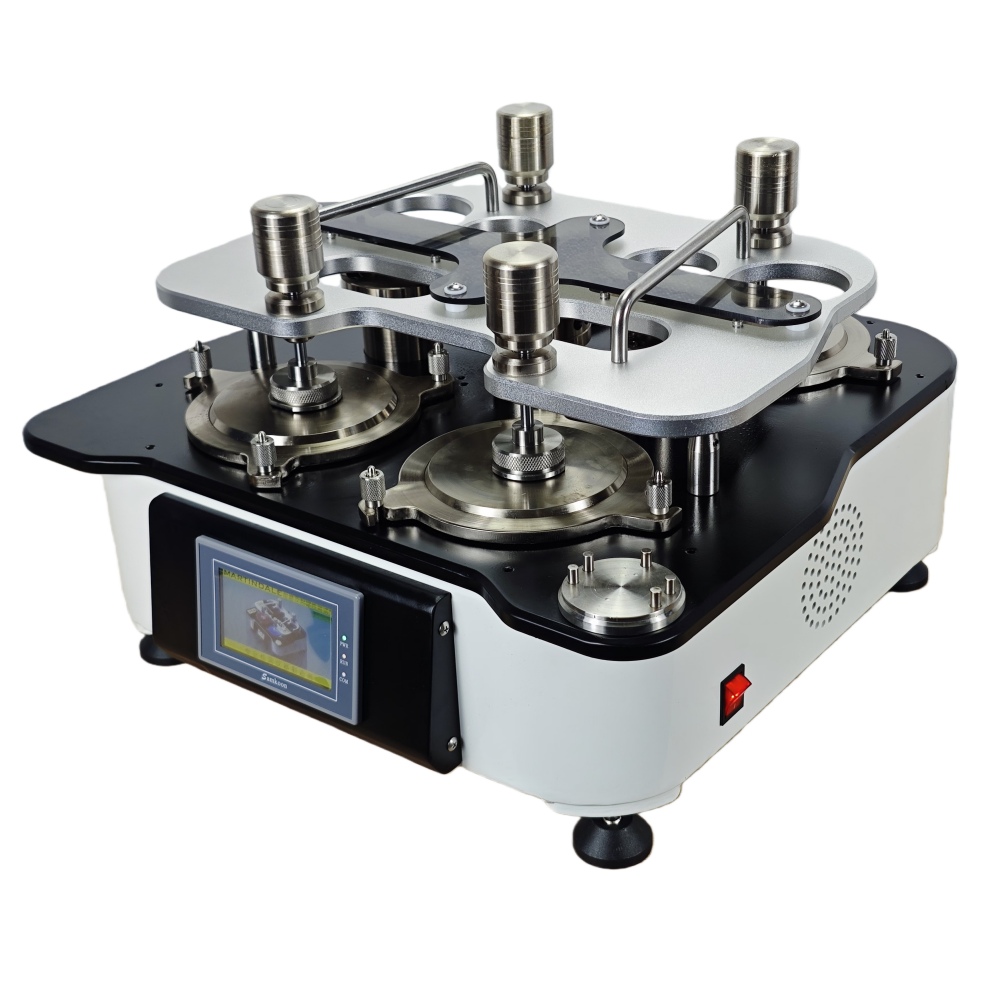

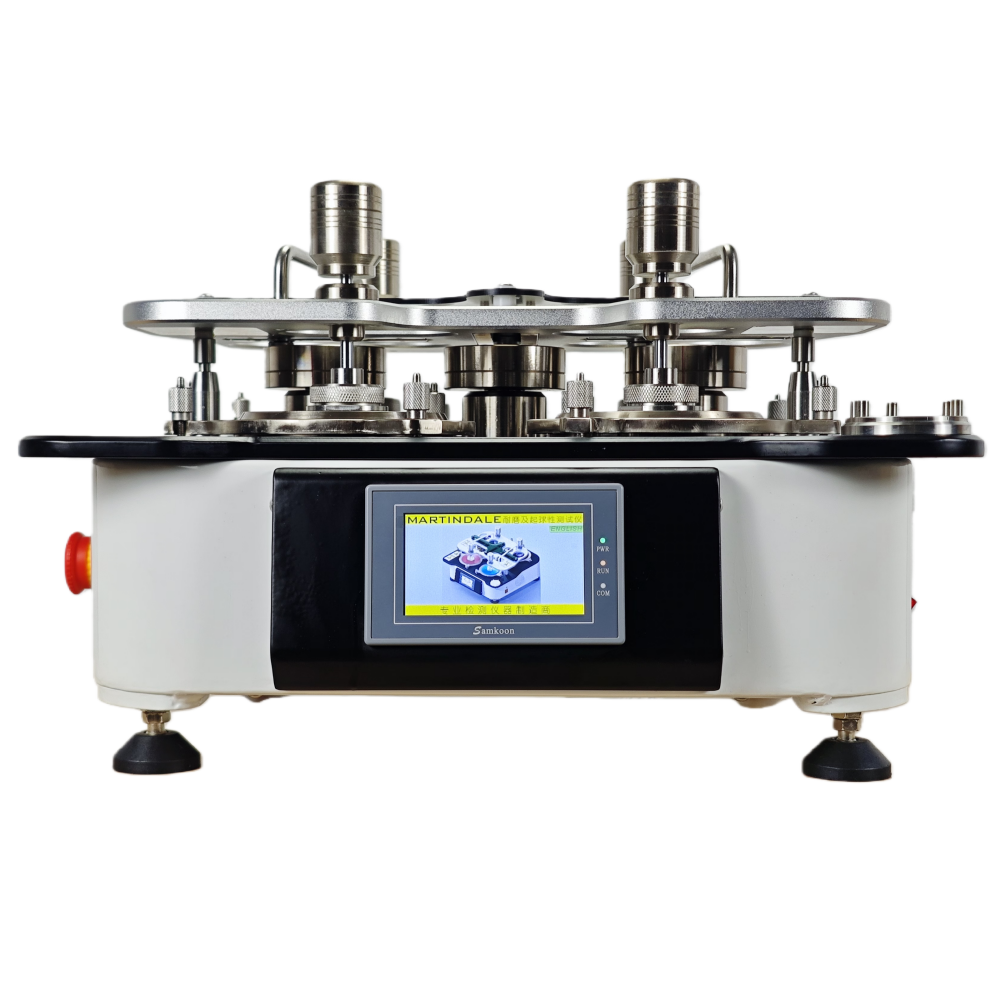

XHF-05A Martindale Abrasion Tester is suitable for the wear-resistance and grinding test under certain pressure of woven and wool-blend fabrics, Leather, knitted goods and non-woven fabric.
ISO5470, IWS TM112/196, DIN53863/53865, BS3424/5690, BS EN 388/530, JIS L1096, ASTM D4966/4970 , ISO17079-2, ISO 12947, ISO17704, ISO 20344, ISO 17076-2, ISO 12945-2, SATRA TM31 and so on.
1.Use advanced color touch screen control system, high resolution, fast response.
2.Each stations is separately controlled, on/off any each position.
3.User can set interval inspection times.
4.With emergency stop to stop running immediately, keep person safe and avoid
5.PLC Control
Work-Station numbers | 4 |
Draw trajectory | Two lissa-jous and Linear |
Counter display | 0-999999 |
Speed | 47.5±2.5rpm |
Abrading table diameter | φ120mm |
Abrasion test | Specimen Holder:198g±2g （3KPa)） |
Loading Weight: 395g±7g (Equal to 9Kpa) | |
Loading Weight:595g±7g (Equal to 12Kpa) | |
Pilling Test | Specimen Holder:155g±1g |
Loading Piece :260g±1g | |
Weight of load hammer | 2.5±0.5kg |
Dimension | 850mm×630mm×430mm |
Weight | 60Kgs |
Power: | 110/220V±10%, 50/60Hz |
