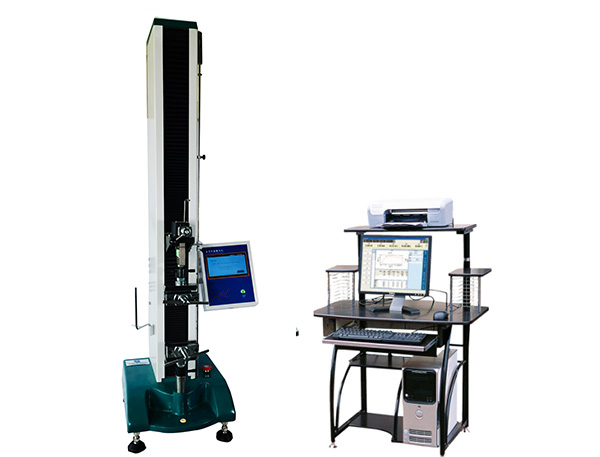

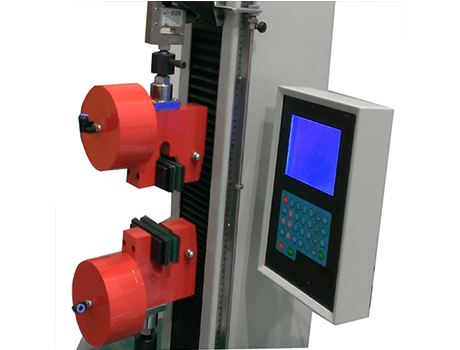

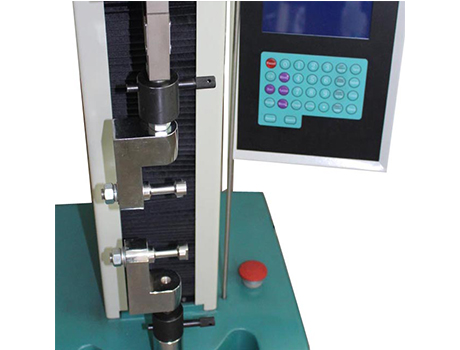

XHL-02T Textile Tensile Strength Tester
Product Category:Strength Tester
XHL-02T Textile Tensile Strength Tester is a new generation of tester with innovative design, convenient using, excellent performance and pleasing appearance, this tester is special deigned in testing textile and Yarn.
Test Function:
Constant Speed Tensile Test
Peeling Test
Tearing Test
Seam Slippage Test

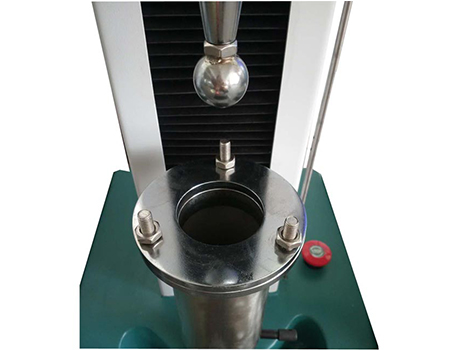

Bursting Test
Definite Elongation Test Load Test
Definite Load Test Elongation Test
Elastic Recovery Test
Yarn Strength Test
Lea Yarn Strength Test
ISO13934.1, ISO13934.2, ISO13937.2, ISO9073.4, ISO13936.1, ISO13936.2, ISO13935.1, ISO13935.2, ISO 2062, ASTM D2256 ASTM D5034, ASTM D5035, ASTM D2261, ASTM D5587, ASTM D3936, ASTM D4964, ISO 9073.3, ISO 9073.5, ASTM D2061.................ETC.
I. Working pattern: CRE principle, controlled by large LCD, equipped with an online interface, can be also controlled by computer with professional textile and yarn testing software., real time display graphs, breaking load, elongation, with PC powerful analysis system, also can give yield load, yield elongation, CV% of load...etc.
II. Adopt Imported sensor from American Tedea, AC servo drive, ball screw, to do a wide range speed setting, suitable for all kinds of material mechanical performance testing.
III. Dual control, LCD panel control and computer control.
IV. According to the customer need to provide a variety of standard test functions, can also be customized according to customer requirements, results can be output to be word, picture, excel format, With different clamps can perform different test perfectly.
V. All testing results and graphs can be statistics and output into Excel, Word, and be printed accordingly.
VI. With the protective function of overload, over current, over voltage, displacement upper and lower limitation, also with emergency stop.
VII. Multi Unit is selectable: CN, N, Lb, g, Kg, mm, Inch
Load Cell | 100N, 200N, 500N, 1000N, 2000N, 3000N, 5000N, 10000N |
Resolution of load | 0.1N |
Load measurement accuracy | +/-0.5% of the indicated load value |
Jog speed | 0.1mm/min-1000mm/min (adjustable) |
Return speed | 0.1mm/min-1000mm/min (adjustable) |
Speed accuracy | <+/-1% |
Elongation | When gauge length is 100mm, max elongation is 700mm |
Gauge Length | 25-500mm (adjustable) |
Displacement resolution and acccuracy | 0.01mm |
Pretension force | Adjustable |
Machine dimension | 380×480×1450mm |
Machine weight | 120kgs |
XHF-06A Textile Elmendorf Tearing Tester
XHF-31 Button Pull Snap Tester

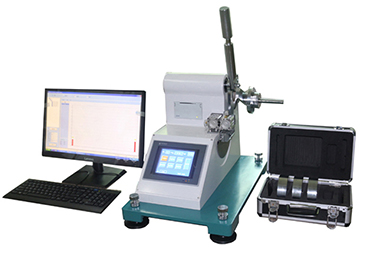

XHF-06C Powertear Textile Digital Elmendorf Tearing Tester
XHF-06B Textile Elmendorf Tear Tester

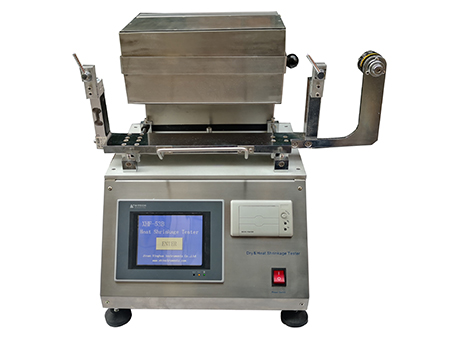

XHF-53 Shrinkage and Force Tester

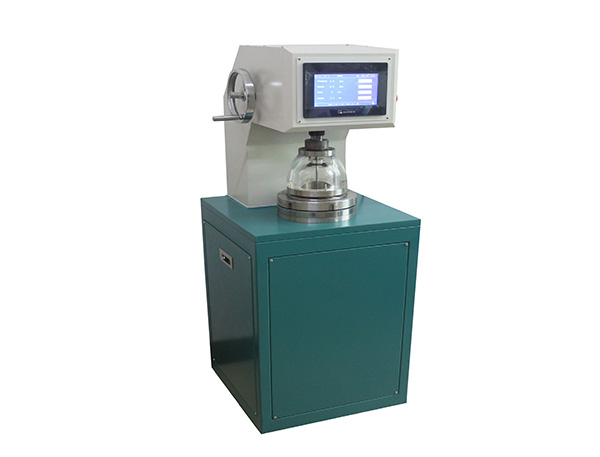

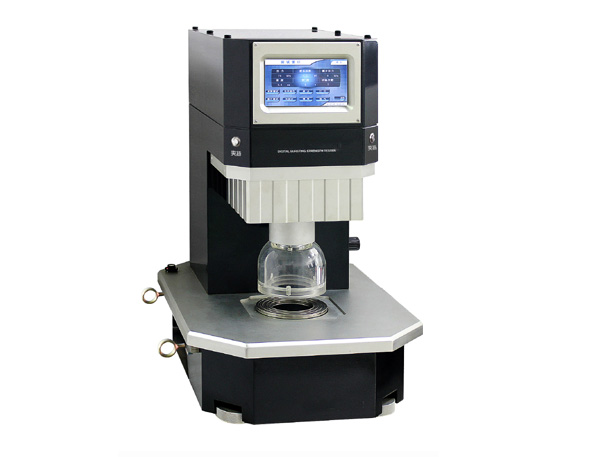

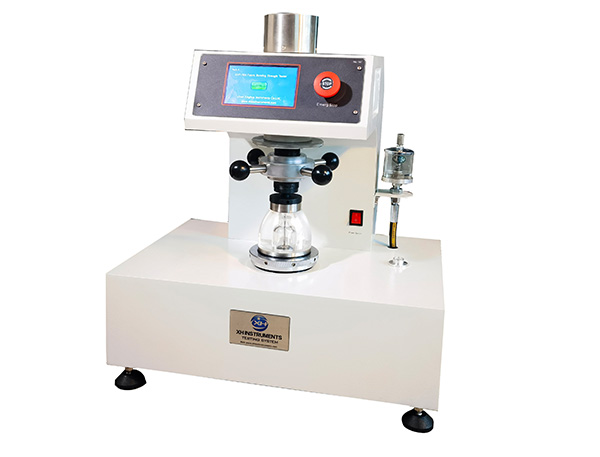

XHF-16B Fabric Bursting Strength Tester
